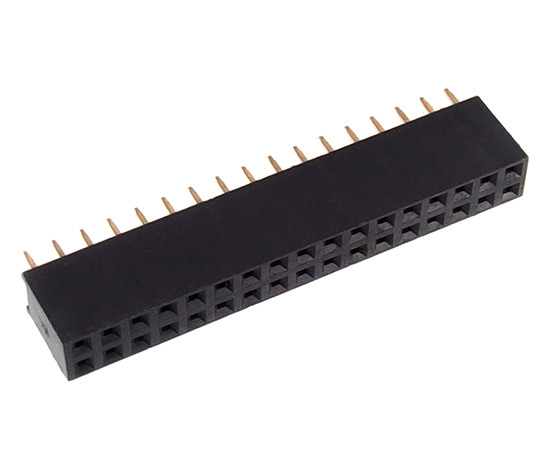

DS1023-2x17S21 CONNFLY Socket pin strips

Symbol Micros: Z LG2x17S

19848

Z LG2x17S

Contractor Symbol:

Case : Rys.LG2x17S

Datasheet

Technical drawing Add to favourites

female; dual row 2x17pin, staright, p.2.54mm, PCB, gold contact; eqiv. PBD-34S, ZL262-34DG

Parameters

Type of pin configuration:	2x17
Number of pins:	34
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-2x17S21 RoHS Case style: Rys.LG2x17S Datasheet

In stock:

5710 pcs.

Quantity of pcs.	3+	15+	80+	400+	2000+
Net price (EUR)	0,3172	0,1873	0,1416	0,1269	0,1218

Add to comparison tool Add inquiry (RFQ)

Packaging:
80/2880 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: ZL262-34DG RoHS Case style: Rys.LG2x17S Datasheet

In stock:

0 pcs.

Quantity of pcs.	3+	15+	80+	400+	2000+
Net price (EUR)	0,3172	0,1873	0,1416	0,1269	0,1218

Add to comparison tool Add inquiry (RFQ)

Packaging:
80 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-2x17S21 Case style: Rys.LG2x17S

External warehouse:

40 pcs.

Quantity of pcs.	1+ (Please wait for the order confirmation)
Net price (EUR)	0,1218

Add to comparison tool Add inquiry (RFQ)

Packaging:
80

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Type of pin configuration:	2x17
Number of pins:	34
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
