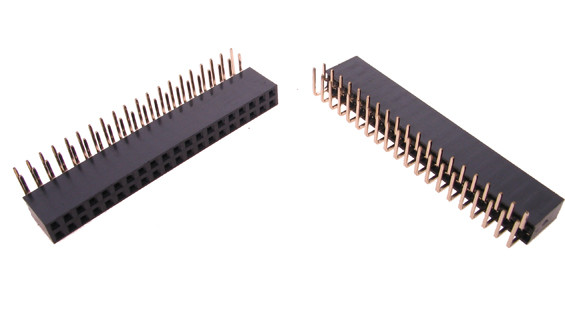

DS1024-2x20R2 CONNFLY Socket pin strips

Symbol Micros: Z LG2x20R

5575

Z LG2x20R

Contractor Symbol:

Case : Rys.LG2x20R

Datasheet

Technical drawing Add to favourites

female; dual row 2x20pin, angled, p.2.54mm, PCB, gold contact; eqiv. PBD-40R, ZL263-40DG

Parameters

Type of pin configuration:	2x20
Number of pins:	40
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1024-2x20R2 RoHS Case style: Rys.LG2x20R Datasheet

In stock:

140 pcs.

Quantity of pcs.	2+	5+	20+	80+	400+
Net price (EUR)	0,5737	0,4274	0,3154	0,2697	0,2491

Add to comparison tool Add inquiry (RFQ)

Packaging:
80/400 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x20
Number of pins:	40
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
