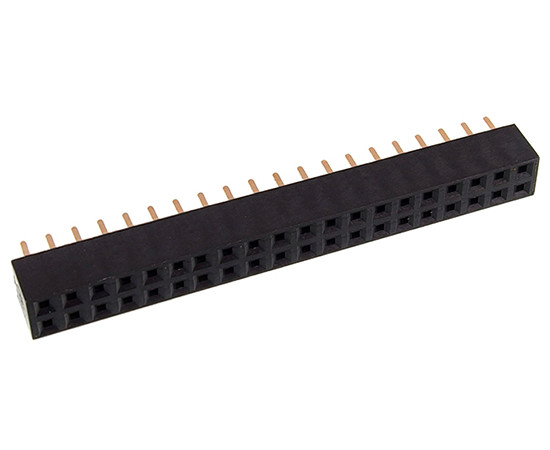

DS1026-05-2x20S8BV CONNFLY Socket pin strips

Symbol Micros: Z LG2x20S 2.0

76437

Z LG2x20S 2.0

Contractor Symbol:

Case : Rys.LG2x20S 2.0

Datasheet

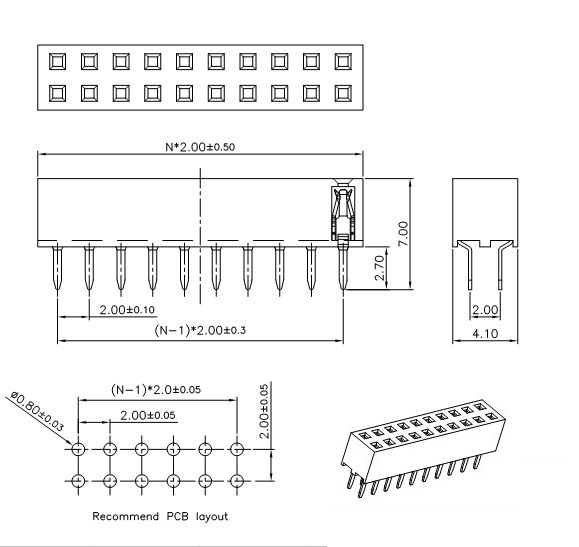

Technical drawing Add to favourites

female; dual row 2x20pin; staright; p.2,00mm, PCB, gold contact; equivalent: ZL265-40DG

Parameters

Type of pin configuration:	2x20
Number of pins:	40
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [m]:	2,0mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number:   Case style: Rys.LG2x20S 2.0 Datasheet

In stock:

336 pcs.

Quantity of pcs.	2+	4+	14+	70+	336+
Net price (EUR)	0,7533	0,5956	0,4402	0,3578	0,3272

Add to comparison tool Add inquiry (RFQ)

Packaging:
14/336 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x20
Number of pins:	40
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [m]:	2,0mm
