DS1023-2x25S21 CONNFLY Socket pin strips

Symbol Micros: Z LG2x25S

75578

Z LG2x25S

Contractor Symbol:

Case : Rys.LG2x25S

Datasheet

Technical drawing Add to favourites

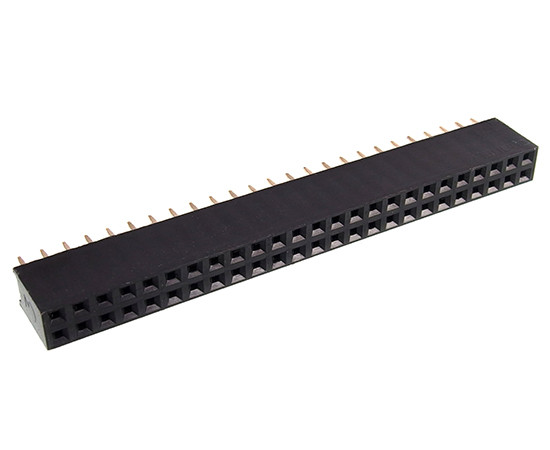

female; dual row 2x25pin, staright, p.2.54mm, PCB, gold contact; eqiv. PBD-50S, ZL262-50DG

Parameters

Type of pin configuration:	2x25
Number of pins:	50
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [mm]:	2,54mm

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-2x25S21 RoHS Case style: Rys.LG2x25S Datasheet

In stock:

120 pcs.

Quantity of pcs.	3+	10+	60+	300+	720+
Net price (EUR)	0,4099	0,2687	0,1869	0,1635	0,1580

Add to comparison tool Add inquiry (RFQ)

Packaging:
60/720 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1023-2x25S21 Case style: Rys.LG2x25S

External warehouse:

800 pcs.

Quantity of pcs.	60+ (Please wait for the order confirmation)
Net price (EUR)	0,1580

Add to comparison tool Add inquiry (RFQ)

Packaging:
60

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2027-01-15

Quantity of pcs.: 1440

• Parameters

Type of pin configuration:	2x25
Number of pins:	50
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Straight
Terminal pitch [mm]:	2,54mm
