DS1024-2x40R2 CONNFLY Socket pin strips

Symbol Micros: Z LG2x40R

5573

Z LG2x40R

Contractor Symbol:

Case : Rys.LG2x40R

Datasheet

Technical drawing Add to favourites

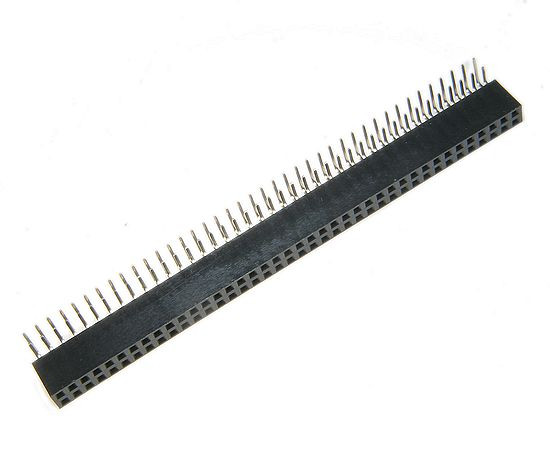

female; dual row 2x40pin, angled, p.2.54mm, PCB, gold contact; eqiv. PBD-80R, ZL263-80DG

Parameters

Type of pin configuration:	2x40
Number of pins:	80
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1024-2*40R2 RoHS Case style: Rys.LG2x40R

In stock:

2 pcs.

Quantity of pcs.	2+	10+	40+	200+	480+
Net price (EUR)	0,8111	0,5102	0,4091	0,3644	0,3527

Add to comparison tool Add inquiry (RFQ)

Packaging:
40/480 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1024-2x40R2 RoHS Case style: Rys.LG2x40R Datasheet

In stock:

297 pcs.

Quantity of pcs.	2+	10+	40+	200+	480+
Net price (EUR)	0,8111	0,5102	0,4091	0,3644	0,3527

Add to comparison tool Add inquiry (RFQ)

Packaging:
40/480 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1024-2x40R2 Case style: Rys.LG2x40R

External warehouse:

960 pcs.

Quantity of pcs.	40+ (Please wait for the order confirmation)
Net price (EUR)	0,3877

Add to comparison tool Add inquiry (RFQ)

Packaging:
40

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Type of pin configuration:	2x40
Number of pins:	80
Type of connector:	Socket
Connector:	Socket pin strips
Mounting:	THT
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
