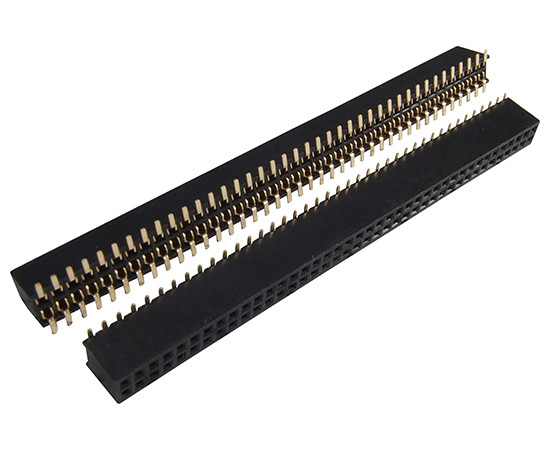

DS1065-05-2x40S8BSXB CONNFLY Female header dual row

Symbol Micros: Z LG2x40T 1.27

26664

Z LG2x40T 1.27

Contractor Symbol:

Case : Rys.LG2x40T 1.27

Datasheet

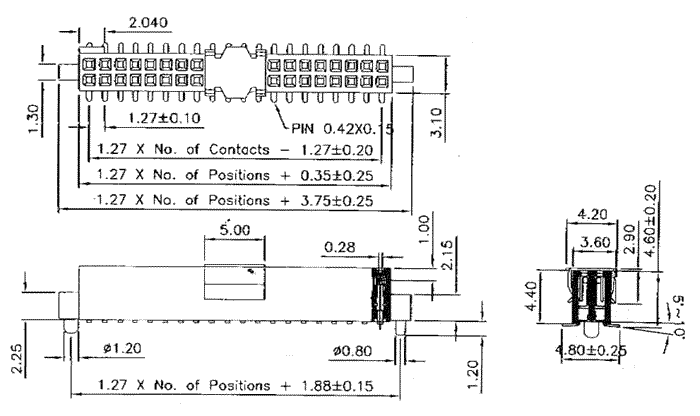

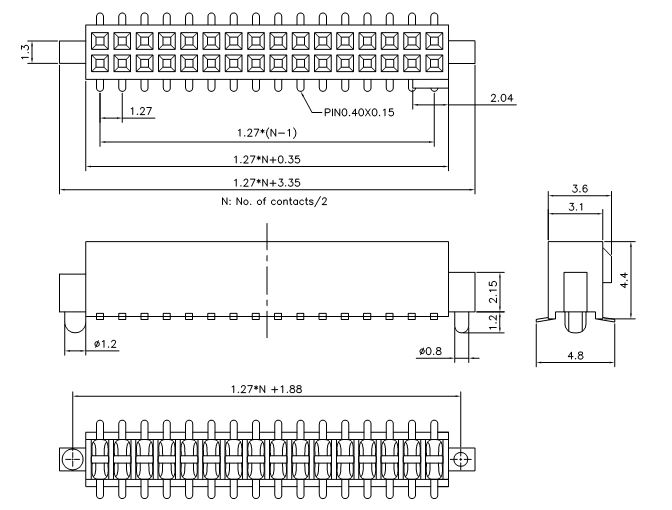

Technical drawing Technical drawing Add to favourites

2x40pin, straight SMT, gold contact, p.1.27mm

Parameters

Type of pin configuration:	2x40
Number of pins:	80
Connector:	Socket pin strips
Mounting:	SMD
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [mm]:	1,27mm

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1065-05-2x40S8BSXB RoHS Case style: Rys.LG2x40T 1.27

In stock:

1 pcs.

Quantity of pcs.	1+	2+	10+	30+	100+
Net price (EUR)	1,7087	1,4597	1,1536	1,0577	1,0051

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1065-05-2x40S8BSXB RoHS Case style: Rys.LG2x40T 1.27

In stock:

33 pcs.

Quantity of pcs.	1+	3+	11+	44+	198+
Net price (EUR)	1,5854	1,2633	1,0714	0,9777	0,9320

Add to comparison tool Add inquiry (RFQ)

Packaging:
11/198 Quantity (multiple: 1)

- +

• Parameters

Type of pin configuration:	2x40
Number of pins:	80
Connector:	Socket pin strips
Mounting:	SMD
Spatial orientation:	Straight
Type of connector:	Female
Terminal pitch [mm]:	1,27mm
