M23-FC06-TH-D12-SH WAIN M23 Connector

Symbol Micros: Z M23-FC06-TH-D12-SH

311290

Z M23-FC06-TH-D12-SH

Contractor Symbol:

Case : Rys.M23-FC06-TH-D12-SH

Datasheet

Add to favourites

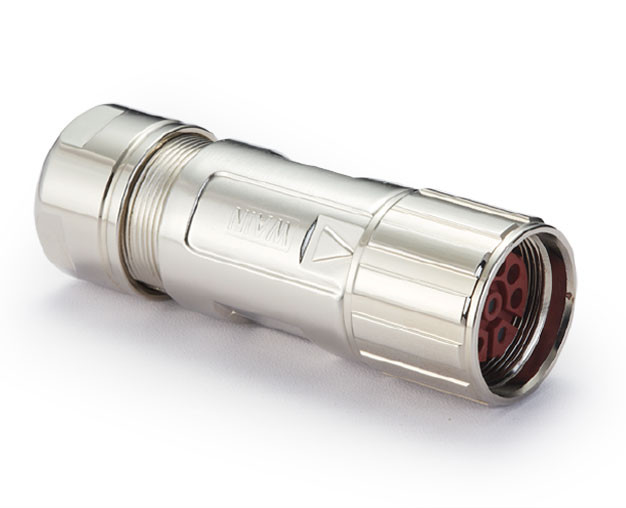

M23 connector, female, 6pin (5+PE), 30A, 630V, IP67, wire gauge: 0.35-4.0mm2 (AWG22-12) limiting temperatures: -20°C...+130°C

Parameters

Connector type:	HDC
Number of pins:	6
Current:	30A
Operating voltage:	630V
IP rating:	IP67
Type of connector:	Female

All parameters

Manufacturer:: WAIN Manufacturer part number: 1660061202001 RoHS Case style: Rys.M23-FC06-TH-D12-SH Datasheet

In stock:

2 pcs.

Quantity of pcs.	1+	3+	6+	15+	30+
Net price (EUR)	26,1582	25,3386	24,9744	24,6329	24,4508

Add to comparison tool Add inquiry (RFQ)

Packaging:
3 Quantity (multiple: 1)

- +

Manufacturer:: WAIN Manufacturer part number: M23-FC06-TH-D12-SH Case style: Rys.M23-FC06-TH-D12-SH Datasheet

In stock:

1 pcs.

Quantity of pcs.	1+	2+	4+	10+	20+
Net price (EUR)	32,2140	31,4627	30,8936	30,3699	30,0968

Add to comparison tool Add inquiry (RFQ)

Packaging:
2 Quantity (multiple: 1)

- +

• Parameters

Connector type:	HDC
Number of pins:	6
Current:	30A
Operating voltage:	630V
IP rating:	IP67
Type of connector:	Female
