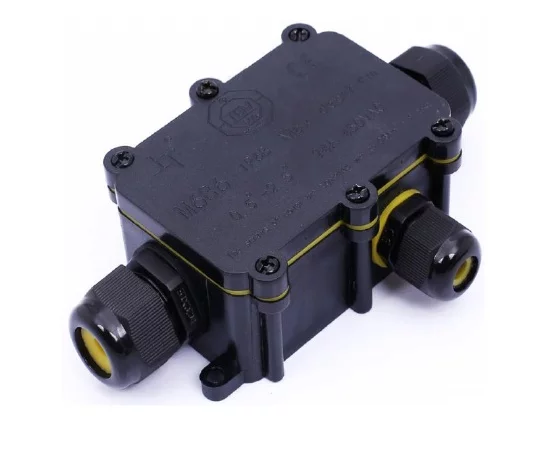

M686*3P GREENWAY Waterproof Junction Box

Symbol Micros: Z M686/3p

116169

Z M686/3p

Contractor Symbol:

Case : Rys.M686/3p

Datasheet

Add to favourites

Cable entry: 2x(M20); 1x(PG9); 24A; 450V; IP68; dimension 135.15mm*86.12mm*31.2mm; black color; working temperature: T100; housing material: PC; contact material: brass

Parameters

Operating current:	24A
Connector type:	Junction box
Case material:	PC
Contact material:	Brass
IP rating:	IP68
Supply voltage range:	450V
Colour:	Black

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Operating current:	24A
Connector type:	Junction box
Case material:	PC
Contact material:	Brass
IP rating:	IP68
Supply voltage range:	450V
Colour:	Black
