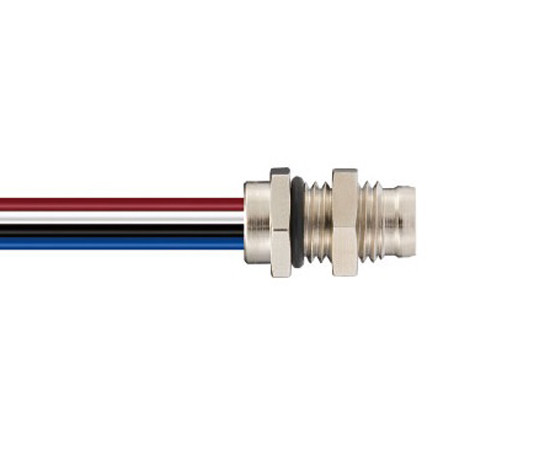

M8 type connector, WAIN M8-M03-BK-M8-W0.25, male, angled, number of contacts: 3

Symbol Micros: Z M8-M03-BK-M8

311127

Z M8-M03-BK-M8

Contractor Symbol:

Case : Rys.M8-M03-BK-M8

Datasheet

Add to favourites

4A, 60V, IP67, wire gauge: 0.25mm2 (AWG24) for panel, cable length: 0.2m

Parameters

Mounting:	On panel
Number of pins:	3
Operating voltage:	60V
Spatial orientation:	Straight
Connector type:	M8
Current:	4A
Type of connector:	Male

All parameters

Manufacturer:: WAIN Manufacturer part number: M8-M03-BK-M8-W0.25 RoHS Case style: Rys.M8-M03-BK-M8 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	40+	100+
Net price (EUR)	5,9597	5,3458	5,1002	5,0294	4,9656

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Mounting:	On panel
Number of pins:	3
Operating voltage:	60V
Spatial orientation:	Straight
Connector type:	M8
Current:	4A
Type of connector:	Male
IP rating:	IP67
