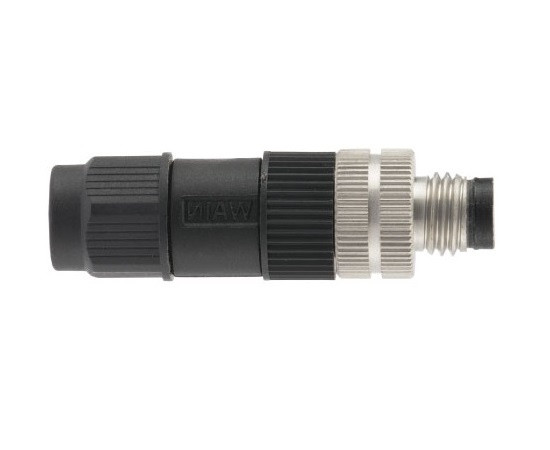

M8 type connector, WAIN M8-M03-T-D5, male, number of contacts: 3

Symbol Micros: Z M8-M03-T-D5

311111

Z M8-M03-T-D5

Contractor Symbol:

Case : Rys.M8-M03-T-D5

Datasheet

Add to favourites

4A, 60V, IP67, wire gauge: 0.14-0.5mm2 (AWG26-20) Cable outlet: 3.5-5mm, montage: screw

Parameters

Mounting:	Screw clamp
Number of pins:	3
Operating voltage:	60V
Spatial orientation:	Straight
Connector type:	M8
Current:	4A
Type of connector:	Male

All parameters

Manufacturer:: WAIN Manufacturer part number: M8-M03-T-D5 RoHS Case style: Rys.M8-M03-T-D5 Datasheet

In stock:

20 pcs.

Quantity of pcs.	1+	3+	10+	20+	40+
Net price (EUR)	8,1600	7,6287	7,2982	7,1801	7,0951

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Mounting:	Screw clamp
Number of pins:	3
Operating voltage:	60V
Spatial orientation:	Straight
Connector type:	M8
Current:	4A
Type of connector:	Male
IP rating:	IP67
