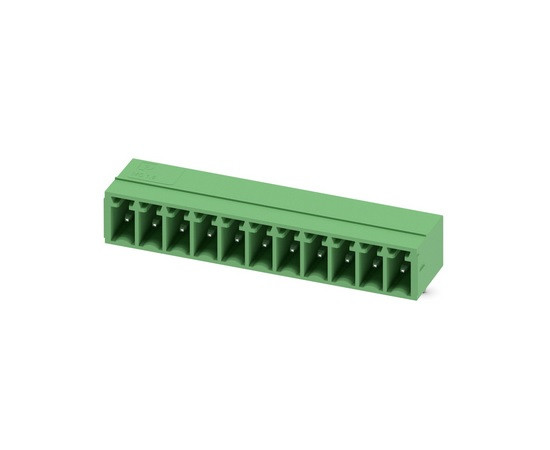

Connector MC 1.5/11-G-3.5 / 1844304 PHOENIX CONTACT

Symbol Micros: Z MC 1.5/11-G-3.5

504402

Z MC 1.5/11-G-3.5

Contractor Symbol:

Case : Rys.MC 1.5/11-G-3.5

Datasheet

Add to favourites

Conn Shrouded Header (4 Sides) HDR 11 POS 3.5mm Solder RA Side Entry Thru-Hole

Parameters

Height:	7,25mm
Number of pins:	11
Terminal pitch:	3,5mm
Colour:	Green
Manufacturer:	PHOENIX CONTACT

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Height:	7,25mm
Number of pins:	11
Terminal pitch:	3,5mm
Colour:	Green
Manufacturer:	PHOENIX CONTACT
