C3510-06RPGB00R HSM IDC connector

Symbol Micros: Z MD06R

97493

Z MD06R

Contractor Symbol:

Case : Rys.MD06R

Datasheet

Technical drawing Add to favourites

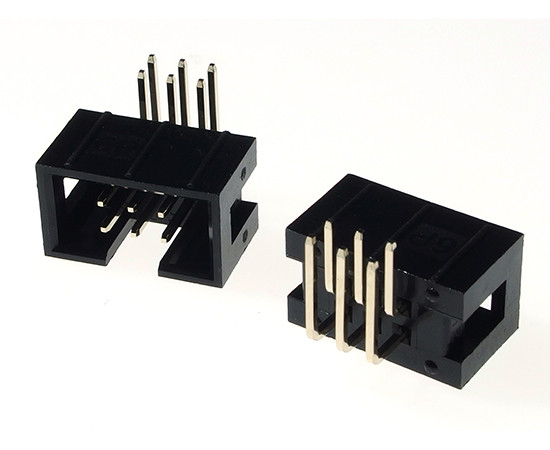

Male 6pin pitch 2.54mm IDC for PCB angled, black color built-up

Parameters

Number of pins:	6
Mounting:	THT
Spatial orientation:	Angled
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: HSM Manufacturer part number: C3510-06RPGB00R RoHS Case style: Rys.MD06R

In stock:

392 pcs.

Quantity of pcs.	3+	20+	100+	360+	720+
Net price (EUR)	0,3244	0,1717	0,1326	0,1212	0,1182

Add to comparison tool Add inquiry (RFQ)

Packaging:
360/720 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	6
Mounting:	THT
Spatial orientation:	Angled
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male
