CH254-BH-14-88-S-GO-A CONNECTAR IDC connector

Symbol Micros: Z MD14S-C

21113

Z MD14S-C

Contractor Symbol:

Case : Rys.MD14S-C

Datasheet

Technical drawing Add to favourites

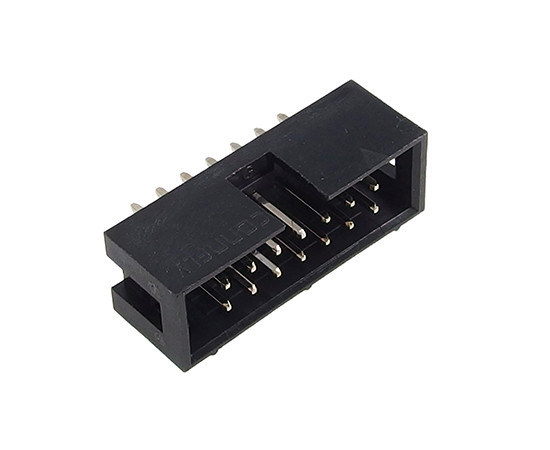

Male 14pin pitch 2.54mm IDC for PCB straight, black color built-up selective gold plated, eqiv. BH14S, ZL231-14PG

Parameters

Number of pins:	14
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH254-BH-088-14-S-GO-A-CH14Y RoHS Case style: Rys.MD14S-C Datasheet

In stock:

27706 pcs.

Quantity of pcs.	5+	30+	200+	1000+	5000+
Net price (EUR)	0,2158	0,0863	0,0501	0,0418	0,0392

Add to comparison tool Add inquiry (RFQ)

Packaging:
200/12000 Quantity (multiple: 1)

- +

Manufacturer:: JILN Manufacturer part number: 3210-14SGOCBKOOA01 Case style: Rys.MD14S-C

External warehouse:

3050 pcs.

Quantity of pcs.	50+ (Please wait for the order confirmation)
Net price (EUR)	0,0800

Add to comparison tool Add inquiry (RFQ)

Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-20

Quantity of pcs.: 36000

• Parameters

Number of pins:	14
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male
