C3510-16RPGB00R HSM IDC connector

Symbol Micros: Z MD16R

12509

Z MD16R

Contractor Symbol:

Case : Rys.MD16R

Datasheet

Technical drawing Add to favourites

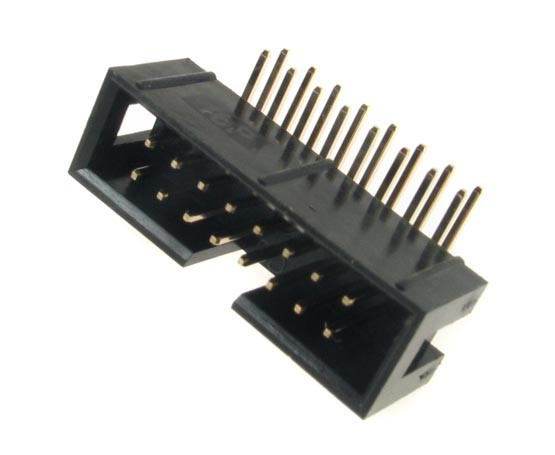

Male 16pin pitch 2.54mm IDC for PCB angled, black color built-up eqiv. BH16R, ZL231-16KG

Parameters

Number of pins:	16
Mounting:	THT
Gold plating:	Gold plated contacts
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	16
Mounting:	THT
Gold plating:	Gold plated contacts
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
Type of connector:	Male
