DS1014-16RF1B CONNFLY IDC connector

Symbol Micros: Z MD16R 2.0

87340

Z MD16R 2.0

Contractor Symbol:

Case : Rys.MD16R 2.0

Datasheet

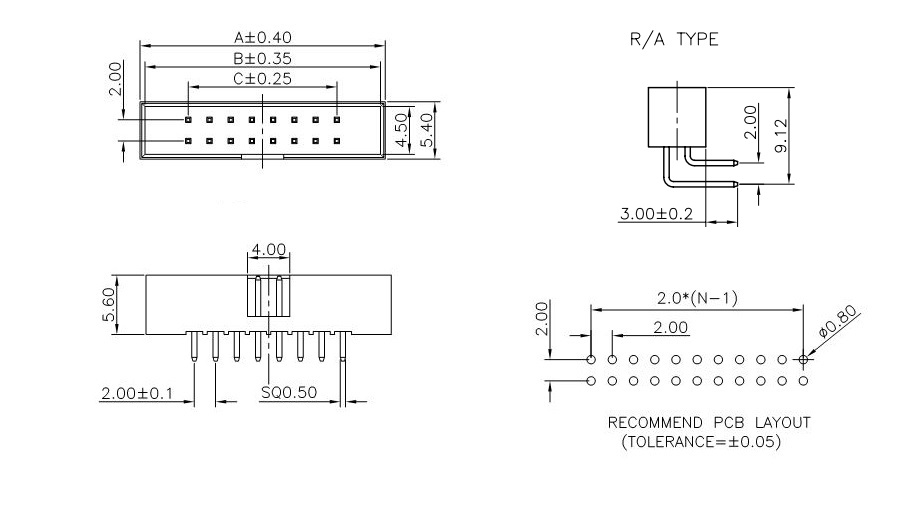

Technical drawing Add to favourites

Male 16pin pitch 2.00mm IDC for PCB angled, black color built-up eqiv. BHM-16R

Parameters

Number of pins:	16
Mounting:	THT
Spatial orientation:	Angled
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,0mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1014-16RF1B-B RoHS Case style: Rys.MD16R 2.0 Datasheet

In stock:

160 pcs.

Quantity of pcs.	3+	10+	40+	160+	640+
Net price (EUR)	0,4084	0,2676	0,1967	0,1685	0,1573

Add to comparison tool Add inquiry (RFQ)

Packaging:
160 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1014-16RF1B-B Case style: Rys.MD16R 2.0

External warehouse:

750 pcs.

Quantity of pcs.	160+ (Please wait for the order confirmation)
Net price (EUR)	0,1573

Add to comparison tool Add inquiry (RFQ)

Packaging:
160

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	16
Mounting:	THT
Spatial orientation:	Angled
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,0mm
Type of connector:	Male
