CH254-BH-088-16-S-GO-A-CH14Y CONNECTAR IDC connector

Symbol Micros: Z MD16S-C

21114

Z MD16S-C

Contractor Symbol:

Case : Rys.MD16S-C

Datasheet

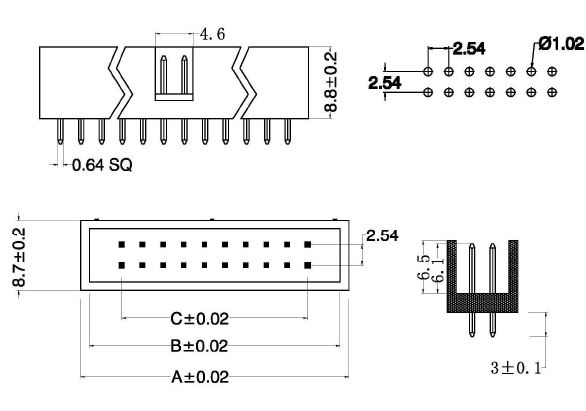

Technical drawing Add to favourites

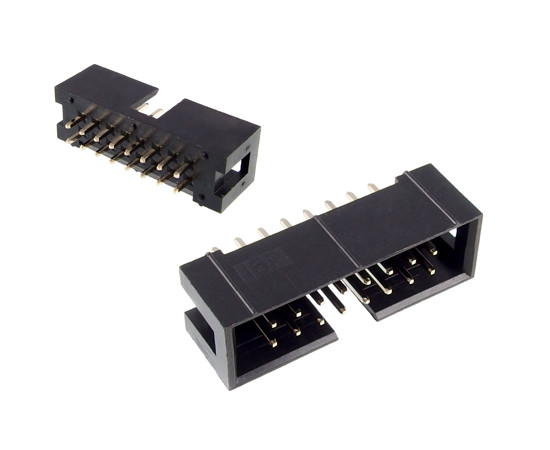

Male 16pin pitch 2.54mm IDC for PCB straight, black color built-up selective gold plated, eqiv. BH16S, ZL231-16PG

Parameters

Number of pins:	16
Mounting:	THT
Gold plating:	Gold plated contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH254-BH-088-16-S-GO-A-CH14Y RoHS Case style: Rys.MD16S-C Datasheet

In stock:

37200 pcs.

Quantity of pcs.	5+	30+	180+	900+	3600+
Net price (EUR)	0,2340	0,1016	0,0646	0,0548	0,0520

Add to comparison tool Add inquiry (RFQ)

Packaging:
180/10800 Quantity (multiple: 1)

- +

Manufacturer:: CONNECTAR Manufacturer part number: CH254-BH-088-16-S-GO-A RoHS Case style: Rys.MD16S-C Datasheet

In stock:

5 pcs.

Quantity of pcs.	5+	30+	180+	900+	3600+
Net price (EUR)	0,2340	0,1016	0,0646	0,0548	0,0520

Add to comparison tool Add inquiry (RFQ)

Packaging:
180/10800 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1013-16SSIB1-B-0 Case style: Rys.MD16S-C

External warehouse:

55800 pcs.

Quantity of pcs.	180+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0520

Add to comparison tool Add inquiry (RFQ)

Packaging:
180

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-06-20

Quantity of pcs.: 21600

• Parameters

Number of pins:	16
Mounting:	THT
Gold plating:	Gold plated contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male
