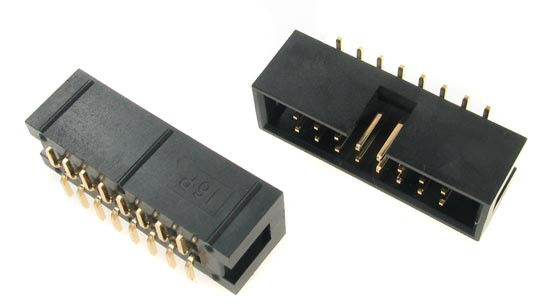

DS1013-16MSiXA-B CONNFLY IDC connector

Symbol Micros: Z MD16T

19362

Z MD16T

Contractor Symbol:

Case : Rys.MD16T

Datasheet

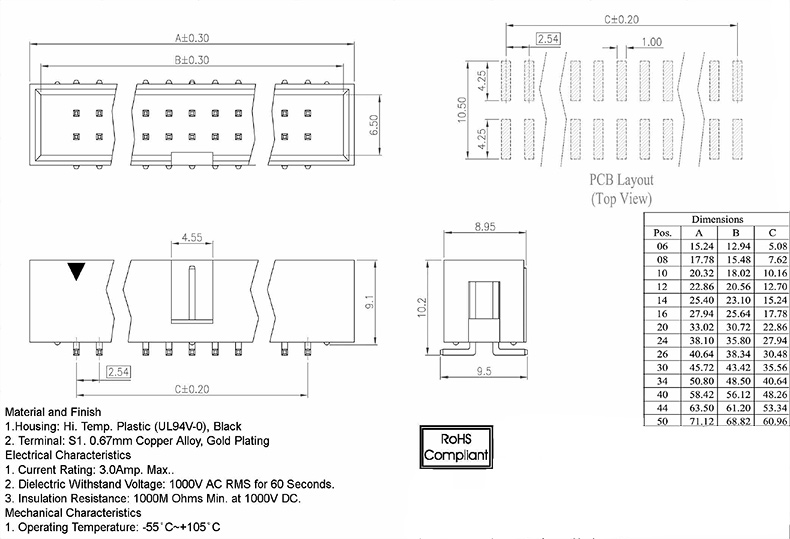

Technical drawing Technical drawing Add to favourites

black color built-up

Parameters

Number of pins:	16
Mounting:	SMD
Gold plating:	Gold plated contacts
Terminal pitch:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1013-16MSiXA-B RoHS Case style: Rys.MD16T Datasheet

In stock:

205 pcs.

Quantity of pcs.	3+	21+	84+	315+	1260+
Net price (EUR)	0,4420	0,2409	0,1960	0,1780	0,1703

Add to comparison tool Add inquiry (RFQ)

Packaging:
21/315/630 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-06-30

Quantity of pcs.: 630

• Parameters

Number of pins:	16
Mounting:	SMD
Gold plating:	Gold plated contacts
Terminal pitch:	2,54mm
Type of connector:	Male
