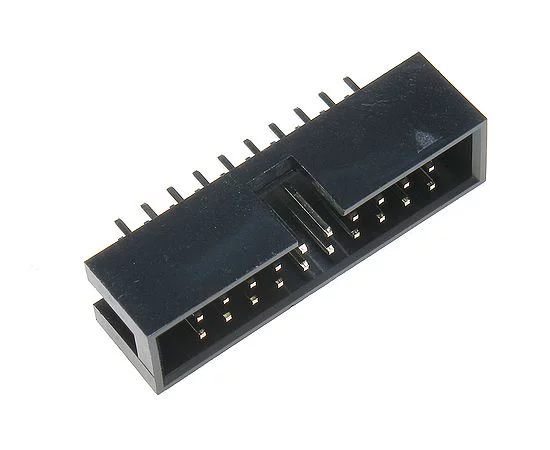

C3510-20SPGB00R HSM IDC connector

Symbol Micros: Z MD20S

6325

Z MD20S

Contractor Symbol:

Case : Rys.MD20S

Datasheet

Technical drawing Technical drawing Add to favourites

Male 20pin pitch 2.54mm IDC for PCB straight, black color built-up gold plated, eqiv. BH20S, ZL231-20PG

Parameters

Number of pins:	20
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: HSM Manufacturer part number: C3510-20SPGB00R RoHS Case style: Rys.MD20S

In stock:

9 pcs.

Quantity of pcs.	3+	10+	40+	160+	640+
Net price (EUR)	0,2619	0,1672	0,1209	0,1026	0,0956

Add to comparison tool Add inquiry (RFQ)

Packaging:
160/4000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-01

Quantity of pcs.: 4000

• Parameters

Number of pins:	20
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male
