CH254-BH-20-88-S-GO-A CONNECTAR IDC connector

Symbol Micros: Z MD20S-C

21115

Z MD20S-C

Contractor Symbol:

Case : Rys.MD20S-C

Datasheet

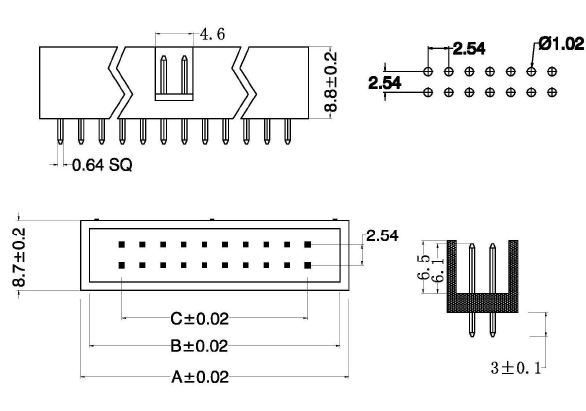

Technical drawing Add to favourites

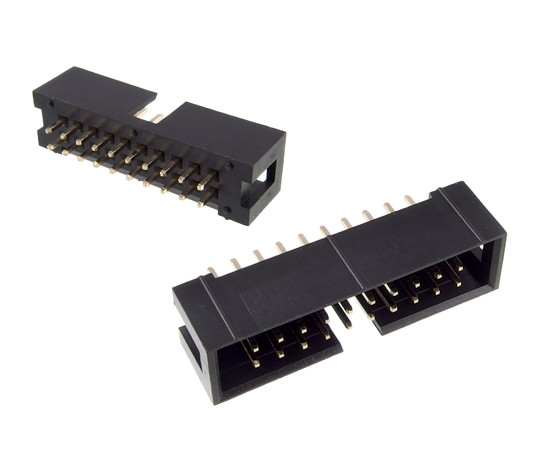

Male 20pin pitch 2.54mm IDC for PCB straight, black color built-up selective gold plated, eqiv. BH20S, ZL231-20PG

Parameters

Number of pins:	20
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH254-BH-088-20-S-GO-A-CH14Y RoHS Case style: Rys.MD20S-C Datasheet

In stock:

28480 pcs.

Quantity of pcs.	5+	30+	160+	800+	4000+
Net price (EUR)	0,2020	0,0879	0,0571	0,0479	0,0449

Add to comparison tool Add inquiry (RFQ)

Packaging:
160/9920 Quantity (multiple: 1)

- +

Manufacturer:: CONNECTAR Manufacturer part number: CH-254-BH-088-20-S-GO-A RoHS Case style: Rys.MD20S-C Datasheet

In stock:

6470 pcs.

Quantity of pcs.	5+	30+	160+	800+	4000+
Net price (EUR)	0,2020	0,0879	0,0571	0,0479	0,0449

Add to comparison tool Add inquiry (RFQ)

Packaging:
160/9920 Quantity (multiple: 1)

- +

Manufacturer:: JILN Manufacturer part number: 3210-20SGOCBKOOA01 Case style: Rys.MD20S-C

External warehouse:

9580 pcs.

Quantity of pcs.	50+ (Please wait for the order confirmation)
Net price (EUR)	0,1326

Add to comparison tool Add inquiry (RFQ)

Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1013-20SSIB1-B-0 Case style: Rys.MD20S-C

External warehouse:

14915 pcs.

Quantity of pcs.	160+ (Please wait for the order confirmation)
Net price (EUR)	0,0474

Add to comparison tool Add inquiry (RFQ)

Packaging:
160

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	20
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male
