DS1013-26RSiB-B-0 CONNFLY IDC connector

Symbol Micros: Z MD26R-C

21125

Z MD26R-C

Contractor Symbol:

Case : Rys.MD26R-C

Datasheet

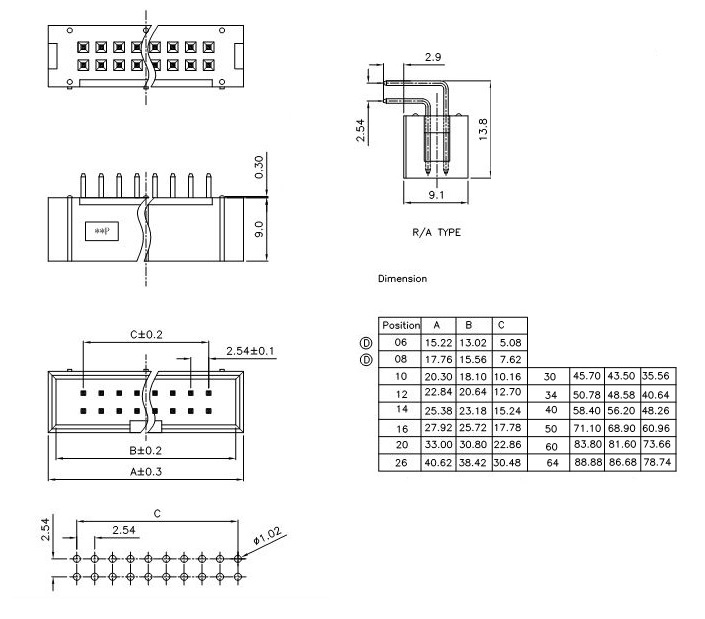

Technical drawing Add to favourites

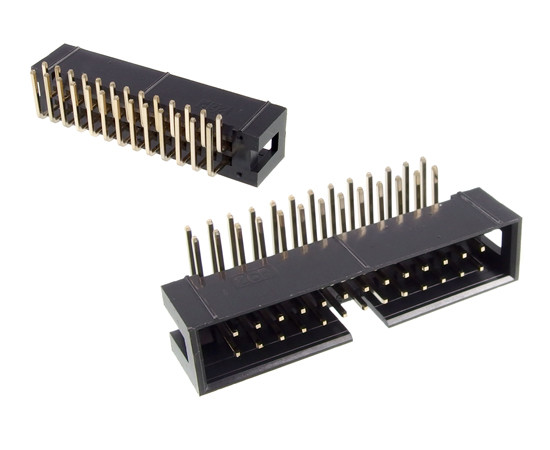

Male 26pin pitch 2.54mm IDC for PCB angled, black color built-up eqiv. BH26R, ZL231-26KG

Parameters

Number of pins:	26
Mounting:	THT
Spatial orientation:	Angled
Gold plating:	Gold plated contacts
Terminal pitch [mm]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1013-26RSiB-B-0 RoHS Case style: Rys.MD26R-C Datasheet

In stock:

1690 pcs.

Quantity of pcs.	3+	20+	120+	240+	1080+
Net price (EUR)	0,2821	0,1499	0,1142	0,1085	0,1026

Add to comparison tool Add inquiry (RFQ)

Packaging:
120 Quantity (multiple: 1)

- +

Manufacturer:: JILN Manufacturer part number: 3210-26RGOCBKOOA01 Case style: Rys.MD26R-C

External warehouse:

1330 pcs.

Quantity of pcs.	50+ (Please wait for the order confirmation)
Net price (EUR)	0,1874

Add to comparison tool Add inquiry (RFQ)

Packaging:
50

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1013-26RSIB-B-0 Case style: Rys.MD26R-C

External warehouse:

7080 pcs.

Quantity of pcs.	120+ (Please wait for the order confirmation)
Net price (EUR)	0,1026

Add to comparison tool Add inquiry (RFQ)

Packaging:
120

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	26
Mounting:	THT
Spatial orientation:	Angled
Gold plating:	Gold plated contacts
Terminal pitch [mm]:	2,54mm
Type of connector:	Male
