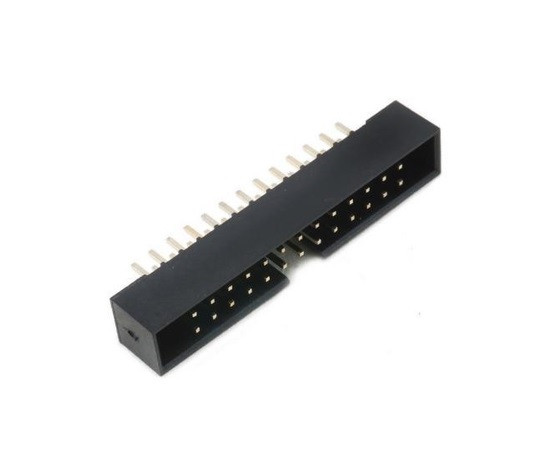

DS1014-26SF1B CONNFLY IDC connector

Symbol Micros: Z MD26S 2.0

87314

Z MD26S 2.0

Contractor Symbol:

Case : Rys.MD26S 2.0

Datasheet

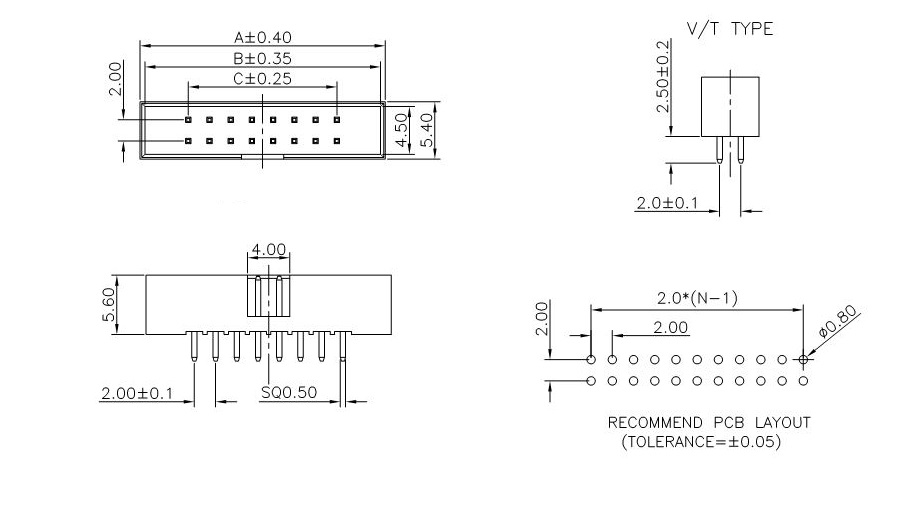

Technical drawing Add to favourites

Male 26pin pitch 2.00mm IDC for PCB straight, black color built-up gold plated, eqiv. BHM-26S

Parameters

Number of pins:	26
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,0mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1014-26SF1B-B RoHS Case style: Rys.MD26S 2.0 Datasheet

In stock:

196 pcs.

Quantity of pcs.	2+	10+	40+	196+	980+
Net price (EUR)	0,5281	0,3192	0,2535	0,2225	0,2115

Add inquiry (RFQ)

Packaging:
196 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1014-26SF1B-B Case style: Rys.MD26S 2.0

External warehouse:

2804 pcs.

Quantity of pcs.	196+ (Please wait for the order confirmation)
Net price (EUR)	0,2115

Add to comparison tool Add inquiry (RFQ)

Packaging:
196

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	26
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,0mm
Type of connector:	Male
