DS1013-34RSiB-B-0 CONNFLY IDC connector

Symbol Micros: Z MD34R-C

21126

Z MD34R-C

Contractor Symbol:

Case : Rys.MD34R-C

Datasheet

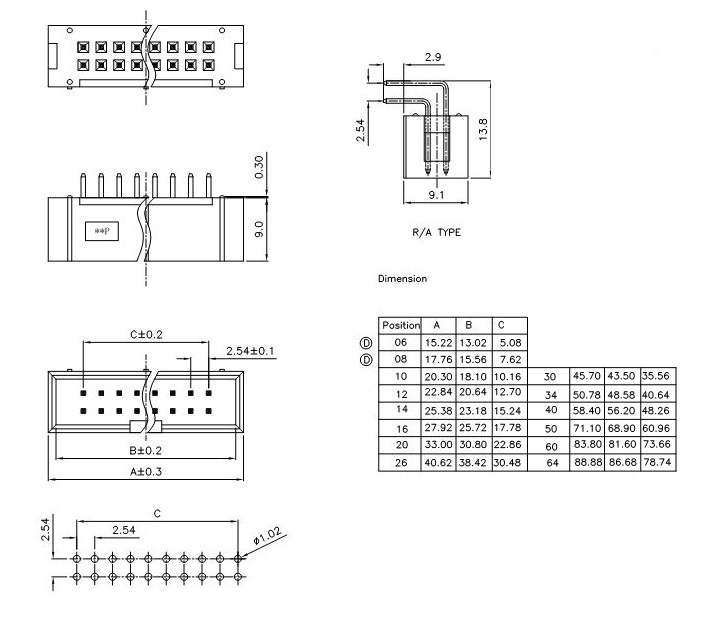

Technical drawing Add to favourites

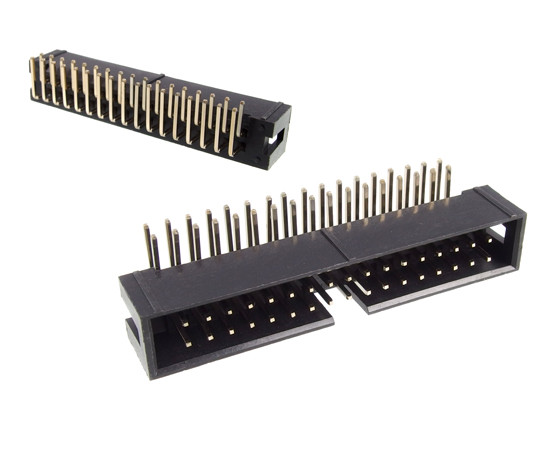

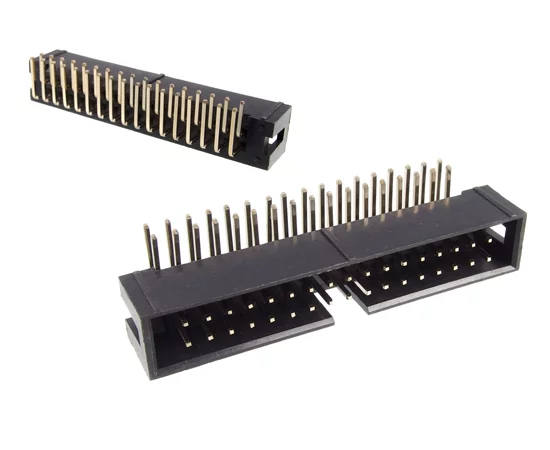

Male 34pin pitch 2.54mm IDC for PCB angled, black color built-up eqiv. BH34R, ZL231-34KG

Parameters

Number of pins:	34
Mounting:	THT
Spatial orientation:	Angled
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1013-34RSiB-B-0 RoHS Case style: Rys.MD34R-C Datasheet

In stock:

226 pcs.

Quantity of pcs.	3+	20+	100+	200+	1000+
Net price (EUR)	0,3670	0,2024	0,1591	0,1508	0,1414

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/200 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1013-34RSiB-B-0 Case style: Rys.MD34R-C

External warehouse:

2600 pcs.

Quantity of pcs.	100+ (Please wait for the order confirmation)
Net price (EUR)	0,1414

Add to comparison tool Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	34
Mounting:	THT
Spatial orientation:	Angled
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male
