CH254-BH-088-34-S-GO-A-CH14Y CONNECTAR IDC connector

Symbol Micros: Z MD34S-C

21117

Z MD34S-C

Contractor Symbol:

Case : Rys.MD34S-C

Datasheet

Technical drawing Add to favourites

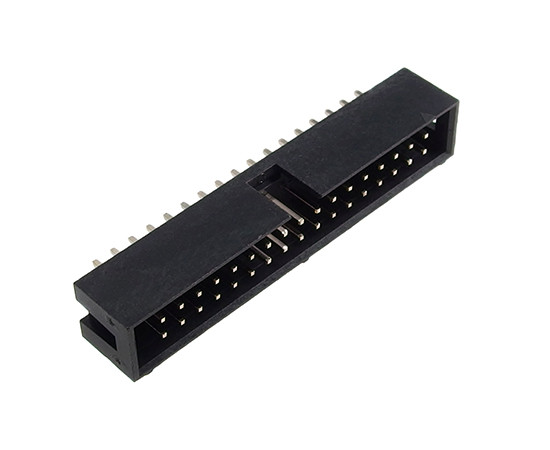

Male 34pin pitch 2.54mm IDC for PCB straight, black color built-up selective gold plated, eqiv. BH34S, ZL231-34PG

Parameters

Number of pins:	34
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH254-BH-088-34-S-GO-A-CH14Y RoHS Case style: Rys.MD34S-C Datasheet

In stock:

4600 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,2581	0,1371	0,1063	0,0980	0,0940

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/6000 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1013-34SSIB1-B-0 Case style: Rys.MD34S-C

External warehouse:

9800 pcs.

Quantity of pcs.	100+ (Please wait for the order confirmation)
Net price (EUR)	0,0940

Add to comparison tool Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-04-20

Quantity of pcs.: 12000

• Parameters

Number of pins:	34
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male
