C3510-40SPGB00R HSM IDC connector

Symbol Micros: Z MD40S

5563

Z MD40S

Contractor Symbol:

Case : Rys.MD40S

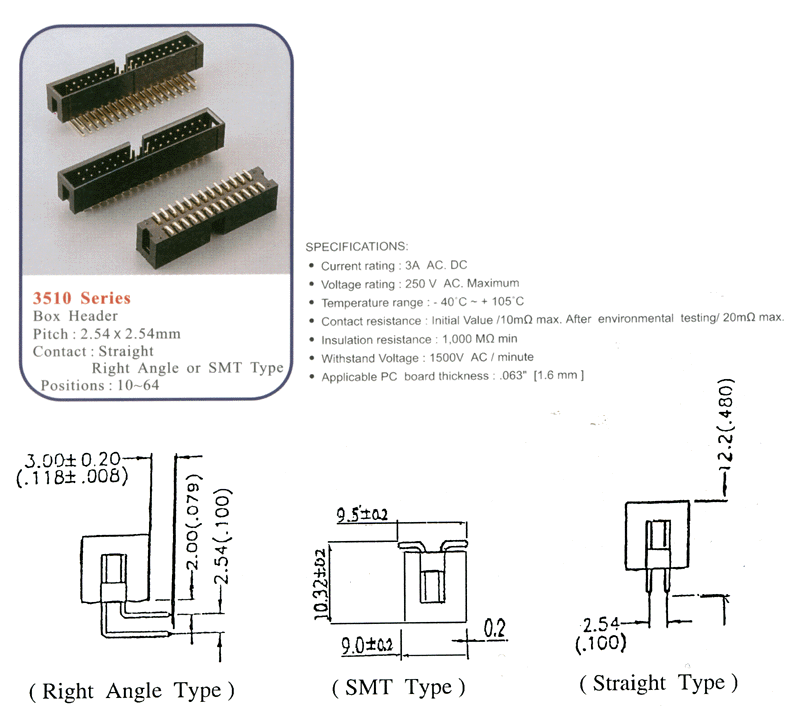

Datasheet

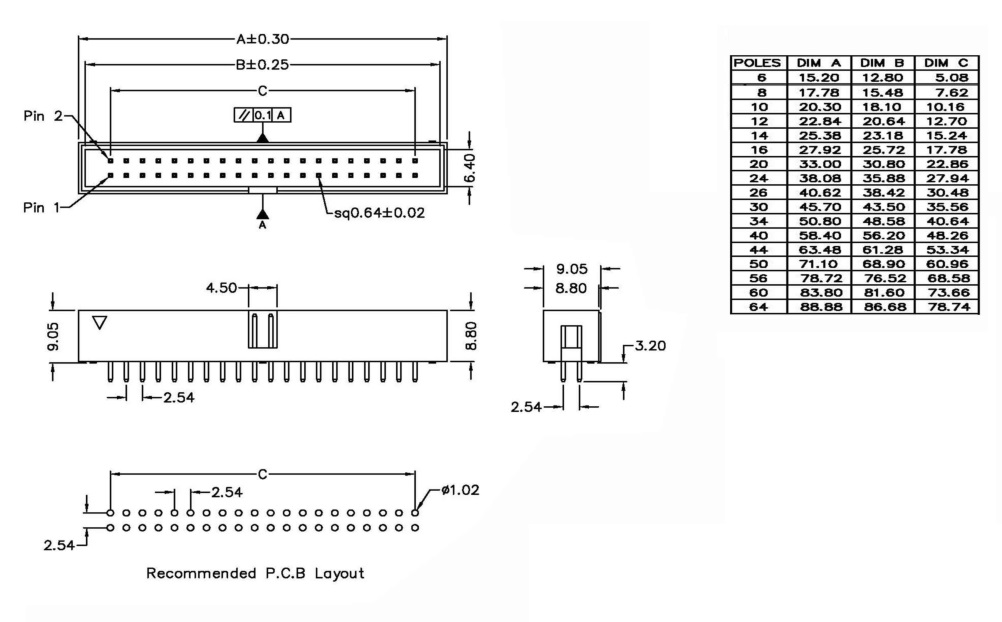

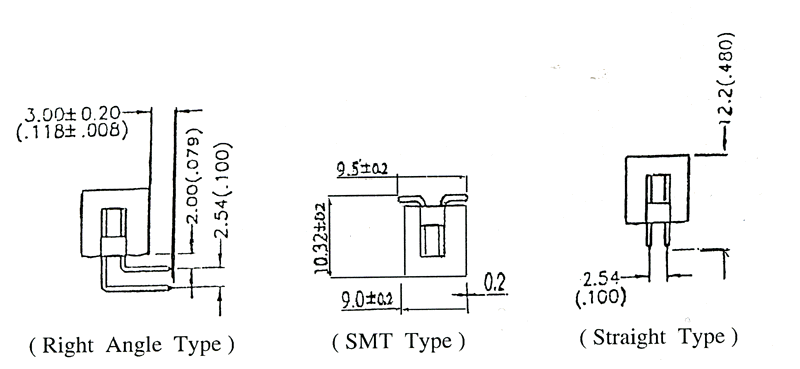

Technical drawing Technical drawing Add to favourites

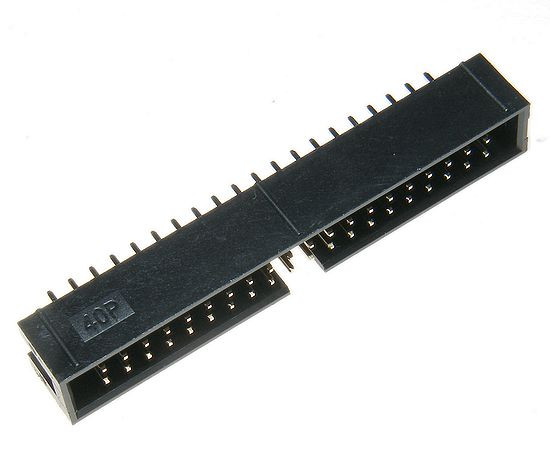

Male 40pin pitch 2.54mm IDC for PCB straight, black color built-up gold plated, eqiv. BH40S, ZL231-40PG

Parameters

Number of pins:	40
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: HSM. Manufacturer part number: C3510-40SPGB00R RoHS Case style: Rys.MD40S

In stock:

1470 pcs.

Quantity of pcs.	2+	5+	20+	80+	400+
Net price (EUR)	0,4467	0,3244	0,2325	0,1954	0,1787

Add to comparison tool Add inquiry (RFQ)

Packaging:
80/2000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-01

Quantity of pcs.: 2000

• Parameters

Number of pins:	40
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male
