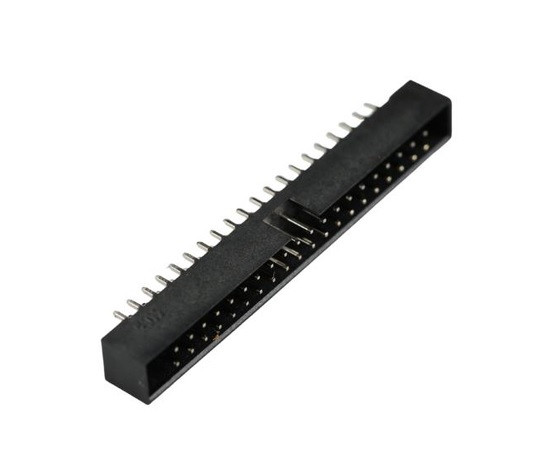

DS1014-40SF1B-B CONNFLY IDC connector

Symbol Micros: Z MD40S 2.0

87320

Z MD40S 2.0

Contractor Symbol:

Case : Rys.MD40S 2.0

Datasheet

Technical drawing Add to favourites

Male 40pin pitch 2.00mm IDC for PCB straight, black color built-up gold plated, eqiv. BHM-40S

Parameters

Number of pins:	40
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,0mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1014-40SF1B-B RoHS Case style: Rys.MD40S 2.0 Datasheet

In stock:

280 pcs.

Quantity of pcs.	2+	10+	40+	140+	560+
Net price (EUR)	0,5783	0,3634	0,2926	0,2651	0,2514

Add inquiry (RFQ)

Packaging:
140 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	40
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gold plated contacts
Terminal pitch [m]:	2,0mm
Type of connector:	Male
