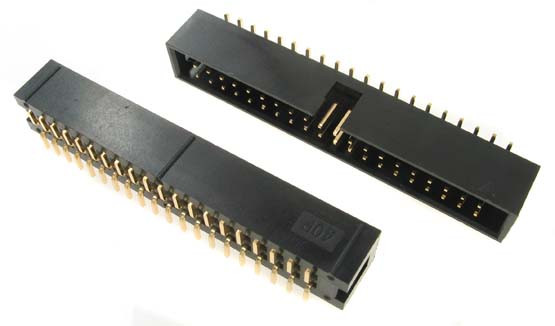

C3510-40DPGB00R HSM IDC connector

Symbol Micros: Z MD40T

19366

Z MD40T

Contractor Symbol:

Case : Rys.MD40T

Datasheet

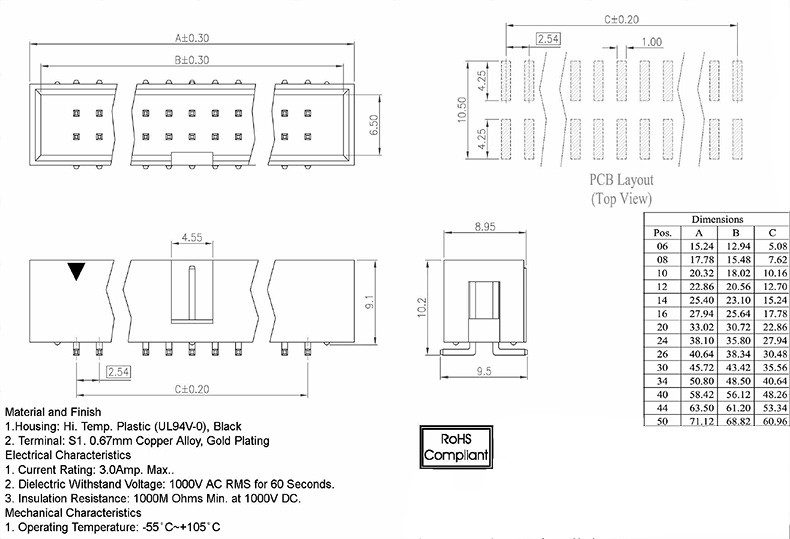

Technical drawing Add to favourites

black color built-up

Parameters

Number of pins:	40
Mounting:	SMD
Gold plating:	Gold plated contacts
Terminal pitch:	2,54mm
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	40
Mounting:	SMD
Gold plating:	Gold plated contacts
Terminal pitch:	2,54mm
Type of connector:	Male
