C3510-50RPGB00R HSM IDC connector

Symbol Micros: Z MD50R

16694

Z MD50R

Contractor Symbol:

Case : Rys.MD50R

Datasheet

Technical drawing Add to favourites

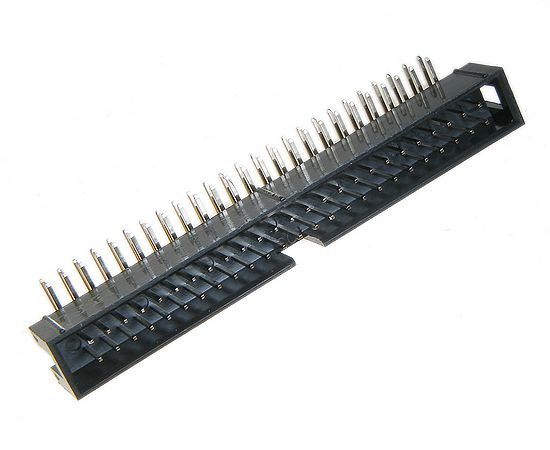

Male 50pin pitch 2.54mm IDC for PCB angled, black color built-up eqiv. BH50R, ZL231-50KG

Parameters

Number of pins:	50
Mounting:	For printing, angled
Gold plating:	Gold plated contacts
Terminal pitch:	2,54mm
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	50
Mounting:	For printing, angled
Gold plating:	Gold plated contacts
Terminal pitch:	2,54mm
Type of connector:	Male
