DS1013-50RSiB CONNFLY IDC connector

Symbol Micros: Z MD50R-C

21128

Z MD50R-C

Contractor Symbol:

Case : Rys.MD50R-C

Datasheet

Technical drawing Add to favourites

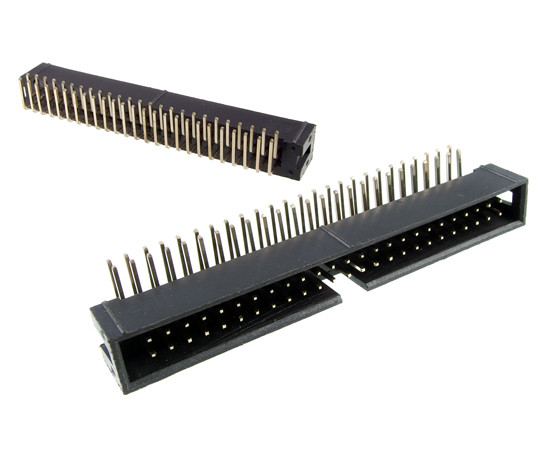

Male 50pin pitch 2.54mm IDC for PCB angled, black color built-up eqiv. BH50R, ZL231-50KG

Parameters

Number of pins:	50
Mounting:	THT
Gold plating:	Gold plated contacts
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1013-50RSIB-B-0 Case style: Rys.MD50R-C

External warehouse:

3240 pcs.

Quantity of pcs.	60+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1277

Add inquiry (RFQ)

Packaging:
60

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	50
Mounting:	THT
Gold plating:	Gold plated contacts
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
Type of connector:	Male
