CH254-EBH-10-S-GO-A CONNECTAR IDC connector

Symbol Micros: Z MDZ10S

3863

Z MDZ10S

Contractor Symbol:

Case : Rys.MDZ10S

Datasheet

Technical drawing Add to favourites

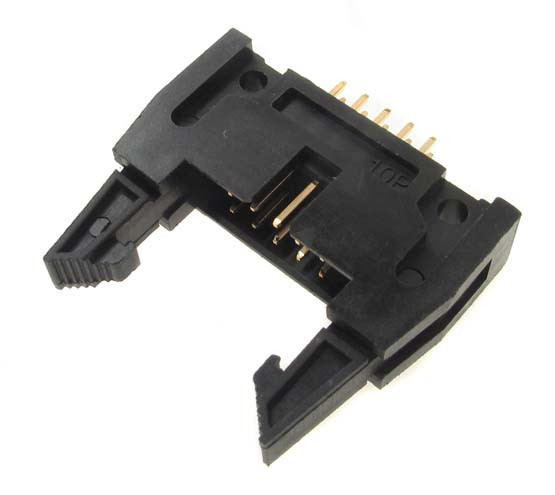

male 10pin IDC, pitch 2.54mm, grey, built-up, with lock selective gold plated, eqiv. SCM10S-LF, AWP-10P

Parameters

Number of pins:	10
Mounting:	THT
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH254-EBH-170-10-S-GO-A-CH14Y RoHS Case style: Rys.MDZ10S Datasheet

In stock:

14332 pcs.

Quantity of pcs.	3+	10+	60+	300+	1200+
Net price (EUR)	0,2831	0,1801	0,1235	0,1075	0,1025

Add to comparison tool Add inquiry (RFQ)

Packaging:
60/600/4800 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1011-10SBSIB7-B Case style: Rys.MDZ10S

External warehouse:

2470 pcs.

Quantity of pcs.	168+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1025

Add to comparison tool Add inquiry (RFQ)

Packaging:
168

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	10
Mounting:	THT
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male
