CH254-EBH-16-S-GO-A CONNECTAR IDC connector

Symbol Micros: Z MDZ16S

3864

Z MDZ16S

Contractor Symbol:

Case : Rys.MDZ16S

Datasheet

Technical drawing Add to favourites

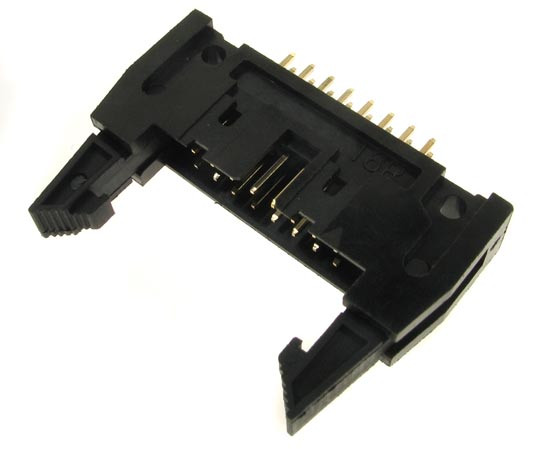

male 16pin IDC, pitch 2.54mm, black, built-up, with lock selective gold plated, eqiv. SCM16S-LF, AWP-16P

Parameters

Number of pins:	16
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNECTAR Manufacturer part number: CH254-EBH-170-16-S-GO-A-CH14Y RoHS Case style: Rys.MDZ16S Datasheet

In stock:

1043 pcs.

Quantity of pcs.	3+	10+	48+	144+	480+
Net price (EUR)	0,3383	0,2194	0,1568	0,1390	0,1298

Add to comparison tool Add inquiry (RFQ)

Packaging:
48/480/3840 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-12-10

Quantity of pcs.: 3840

• Parameters

Number of pins:	16
Mounting:	THT
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male
