DS1011-26RBSIB7-B CONNFLY IDC connector

Symbol Micros: Z MDZ26R

4383

Z MDZ26R

Contractor Symbol:

Case : Rys.MDZ26R

Datasheet

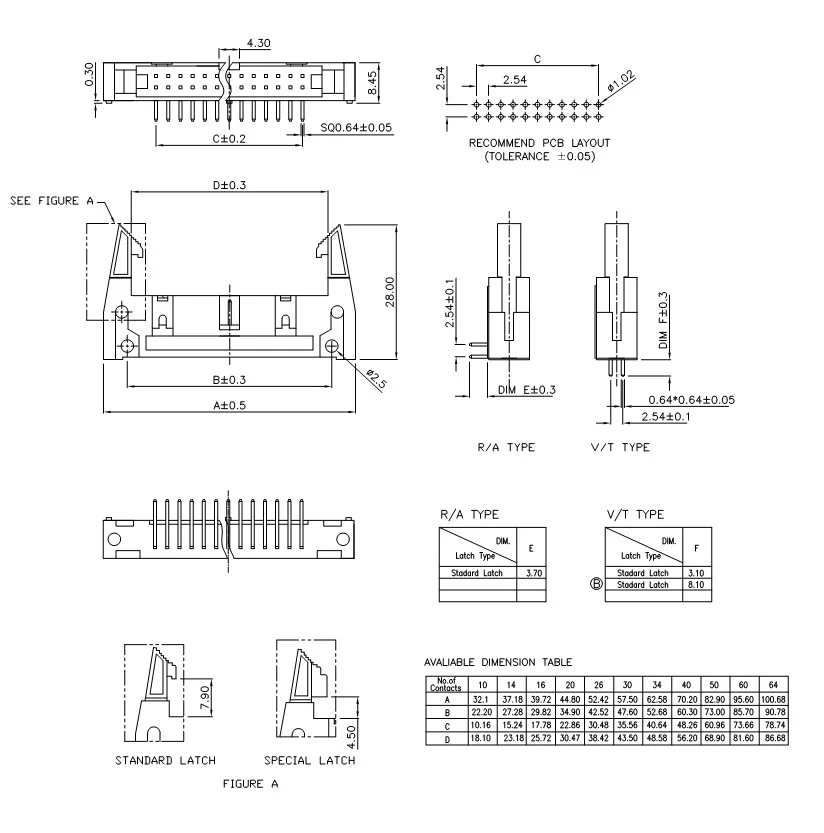

Technical drawing Add to favourites

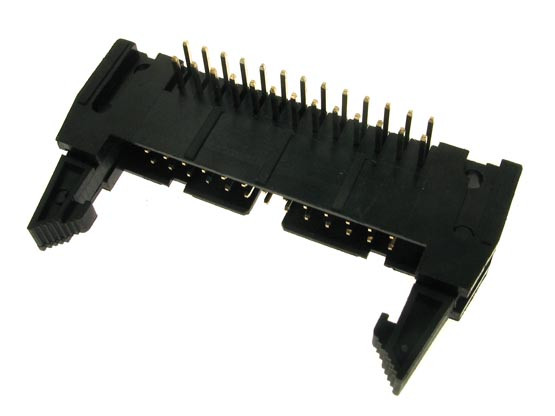

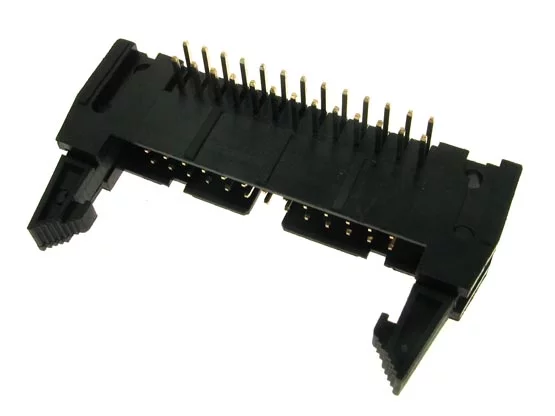

male 26pin IDC, pitch 2.54mm, grey, built-up, with lock selective gold plated, eqiv. SCM26R-LF, AWP-26K

Parameters

Number of pins:	26
Mounting:	THT
Gold plating:	Gilded contacts
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1011-26RBSIB7-B RoHS Case style: Rys.MDZ26R

In stock:

608 pcs.

Quantity of pcs.	2+	5+	20+	98+	490+
Net price (EUR)	0,6019	0,4497	0,3331	0,2807	0,2617

Add to comparison tool Add inquiry (RFQ)

Packaging:
98/490 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1011-26RBSIB7-B RoHS Case style: Rys.MDZ26R

In stock:

20 pcs.

Quantity of pcs.	2+	10+	50+	200+	1000+
Net price (EUR)	0,6019	0,3807	0,2998	0,2736	0,2617

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1011-26RBSIB7-B Case style: Rys.MDZ26R

External warehouse:

2058 pcs.

Quantity of pcs.	98+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,2617

Add to comparison tool Add inquiry (RFQ)

Packaging:
98

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	26
Mounting:	THT
Gold plating:	Gilded contacts
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
Type of connector:	Male
