DS1011-34RBSIB7-B CONNFLY IDC connector

Symbol Micros: Z MDZ34R

4384

Z MDZ34R

Contractor Symbol:

Case : Rys.MDZ34R

Datasheet

Technical drawing Add to favourites

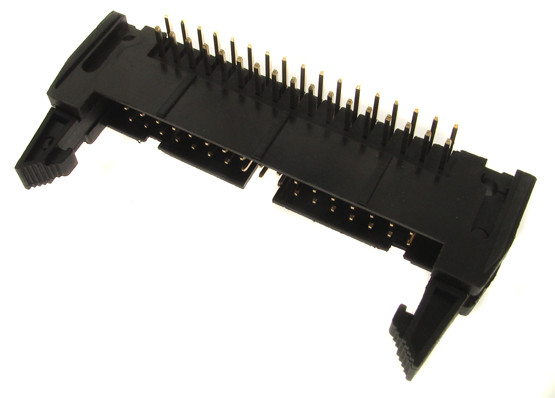

male 34pin IDC, pitch 2.54mm, grey, built-up, with lock selective gold plated, eqiv. SCM34R-LF, AWP-34K

Parameters

Number of pins:	34
Mounting:	THT
Gold plating:	Gilded contacts
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1011-34RBSiB7-B Case style: Rys.MDZ34R

External warehouse:

924 pcs.

Quantity of pcs.	84+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1834

Add to comparison tool Add inquiry (RFQ)

Packaging:
84

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	34
Mounting:	THT
Gold plating:	Gilded contacts
Spatial orientation:	Angled
Terminal pitch [m]:	2,54mm
Type of connector:	Male
