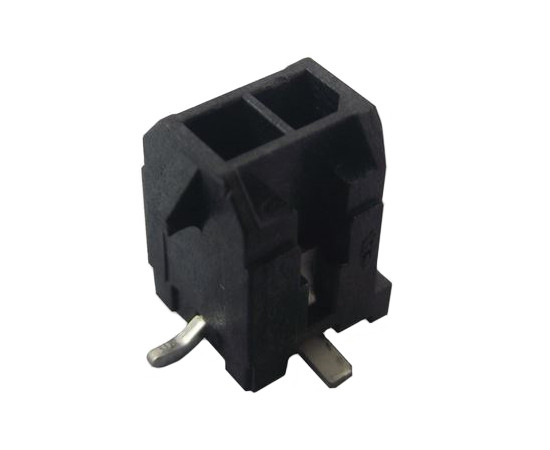

43045-0218 MOLEX Micro-Fit 3.0

Symbol Micros: Z MFG02s

27472

Z MFG02s

Contractor Symbol:

Case : Rys.MFG02s

Datasheet

Technical drawing Add to favourites

socket; male; straight; SMT, 02pin; type of pin configuration: 2x1; pitch:3.0mm mate with: MFM

Parameters

Type of pin configuration:	2x1
Number of pins:	2
Manufacturer:	MOLEX
Spatial orientation:	Vertical
Mounting:	SMD
Connector:	Socket
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type of pin configuration:	2x1
Number of pins:	2
Manufacturer:	MOLEX
Spatial orientation:	Vertical
Mounting:	SMD
Connector:	Socket
Type of connector:	Male
