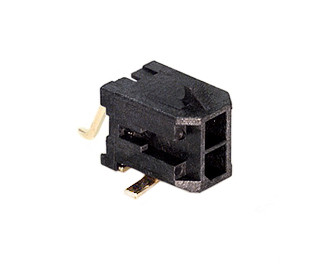

43045-0209 MOLEX Micro-Fit 3.0

Symbol Micros: Z MFG02u

27484

Z MFG02u

Contractor Symbol:

Case : Rys.MFG02u

Datasheet

Technical drawing Add to favourites

socket; male; angled; SMT, 02pin; type of pin configuration: 2x1; pitch:3.0mm mate with: MFM

Parameters

Number of pins:	2
Type of pin configuration:	2x1
Manufacturer:	MOLEX
Spatial orientation:	Horizontal
Mounting:	SMD
Connector:	Socket
Type of connector:	Male

All parameters

Manufacturer:: MOLEX Manufacturer part number: 0430450209 Case style: Rys.MFG02u

External warehouse:

5800 pcs.

Quantity of pcs.	200+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,7508

Add to comparison tool Add inquiry (RFQ)

Packaging:
200

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	2
Type of pin configuration:	2x1
Manufacturer:	MOLEX
Spatial orientation:	Horizontal
Mounting:	SMD
Connector:	Socket
Type of connector:	Male
