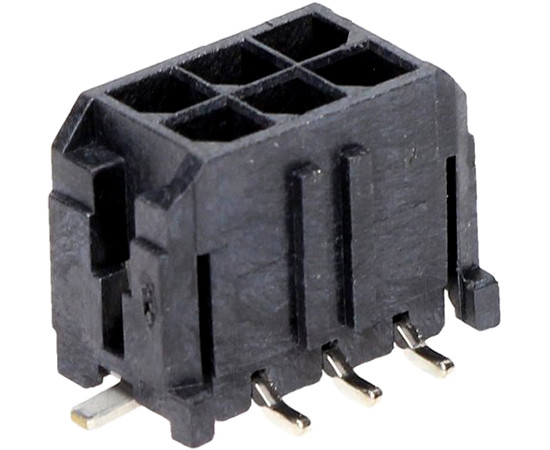

43045-0618 MOLEX Micro-Fit 3.0

Symbol Micros: Z MFG06s

27474

Z MFG06s

Contractor Symbol:

Case : Rys.MFG06s

Datasheet

Technical drawing Add to favourites

socket; male; straight; SMT, 06pin; type of pin configuration: 2x3; pitch:3.0mm mate with: MFM

Parameters

Number of pins:	6
Manufacturer:	MOLEX
Mounting:	SMD
Spatial orientation:	Vertical
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	3mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	6
Manufacturer:	MOLEX
Mounting:	SMD
Spatial orientation:	Vertical
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	3mm
