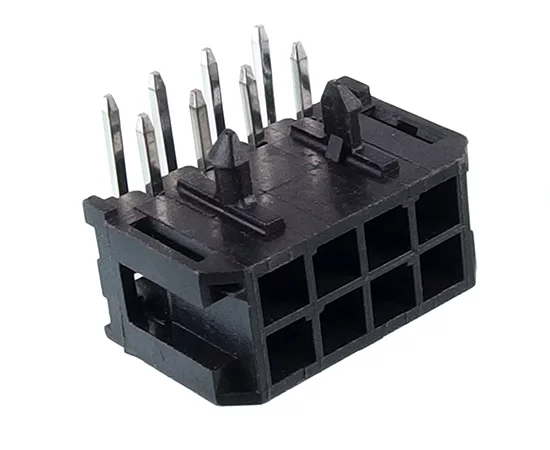

W4230-08PDRTB0N HSM Cable connector

Symbol Micros: Z MFG08k

27452

Z MFG08k

Contractor Symbol:

Case : Rys.MFG08k

Datasheet

Add to favourites

socket; angled; THT; 08pin; type of pin configuration: 2x4; pitch: 3.0mm mate with MFM, eqiv.MOLEX MX-43045-0800

Parameters

Number of pins:	8
Type of pin configuration:	2x4
Spatial orientation:	Angled
Mounting:	THT
Connector:	Socket
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	8
Type of pin configuration:	2x4
Spatial orientation:	Angled
Mounting:	THT
Connector:	Socket
Type of connector:	Male
