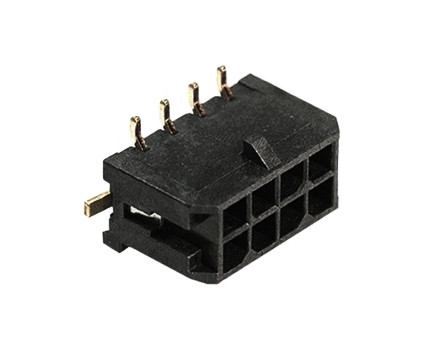

43045-0818 MOLEX Micro-Fit 3.0

Symbol Micros: Z MFG08s

27475

Z MFG08s

Contractor Symbol:

Case : Rys.MFG08s

Datasheet

Technical drawing Add to favourites

socket; male; straight; SMT, 08pin; type of pin configuration: 2x4; pitch:3.0mm mate with: MFM

Parameters

Number of pins:	8
Manufacturer:	MOLEX
Mounting:	SMD
Spatial orientation:	Vertical
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	3mm

All parameters

Manufacturer:: MOLEX Manufacturer part number: 0430450818 Case style: Rys.MFG08s

External warehouse:

24749 pcs.

Quantity of pcs.	200+ (Please wait for the order confirmation)
Net price (EUR)	1,2911

Add to comparison tool Add inquiry (RFQ)

Packaging:
200

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	8
Manufacturer:	MOLEX
Mounting:	SMD
Spatial orientation:	Vertical
Connector:	Socket
Type of connector:	Male
Terminal pitch [m]:	3mm
