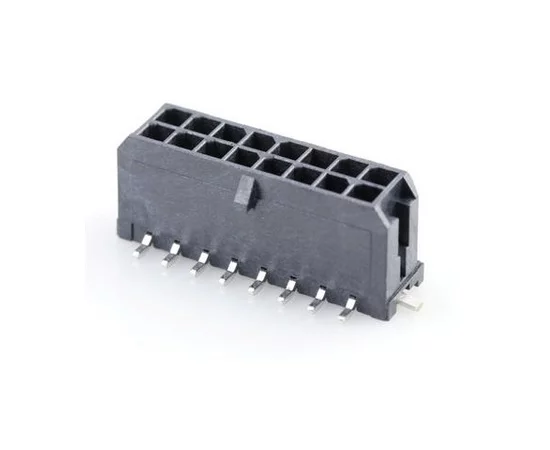

43045-1618 MOLEX Micro-Fit 3.0

Symbol Micros: Z MFG16s

27479

Z MFG16s

Contractor Symbol:

Case : Rys.MFG16s

Datasheet

Technical drawing Add to favourites

socket; male; straight; SMT, 16pin; type of pin configuration: 2x8; pitch:3.0mm mate with: MFM

Parameters

Number of pins:	16
Type of pin configuration:	2x8
Manufacturer:	MOLEX
Spatial orientation:	Vertical
Mounting:	SMD
Connector:	Socket
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	16
Type of pin configuration:	2x8
Manufacturer:	MOLEX
Spatial orientation:	Vertical
Mounting:	SMD
Connector:	Socket
Type of connector:	Male
