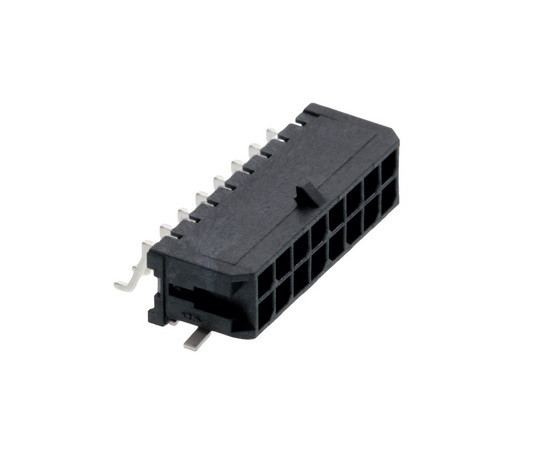

43045-1609 MOLEX Micro-Fit 3.0

Symbol Micros: Z MFG16u

27491

Z MFG16u

Contractor Symbol:

Case : Rys.MFG16u

Datasheet

Add to favourites

socket; male; angled; SMT, 16pin; type of pin configuration: 2x8; pitch:3.0mm mate with: MFM

Parameters

Type of pin configuration:	2x8
Number of pins:	16
Manufacturer:	MOLEX
Spatial orientation:	Horizontal
Mounting:	SMD
Connector:	Socket
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Type of pin configuration:	2x8
Number of pins:	16
Manufacturer:	MOLEX
Spatial orientation:	Horizontal
Mounting:	SMD
Connector:	Socket
Type of connector:	Male
