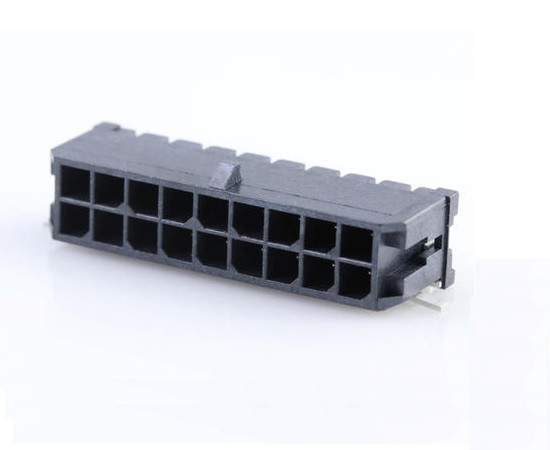

43045-1809 MOLEX Micro-Fit 3.0

Symbol Micros: Z MFG18u

27492

Z MFG18u

Contractor Symbol:

Case : Rys.MFG18u

Datasheet

Add to favourites

socket; male; angled; SMT, 18pin; type of pin configuration: 2x9; pitch:3.0mm mate with: MFM

Parameters

Number of pins:	18
Type of pin configuration:	2x9
Spatial orientation:	Horizontal
Mounting:	SMD
Connector:	Socket
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	18
Type of pin configuration:	2x9
Spatial orientation:	Horizontal
Mounting:	SMD
Connector:	Socket
Type of connector:	Male
