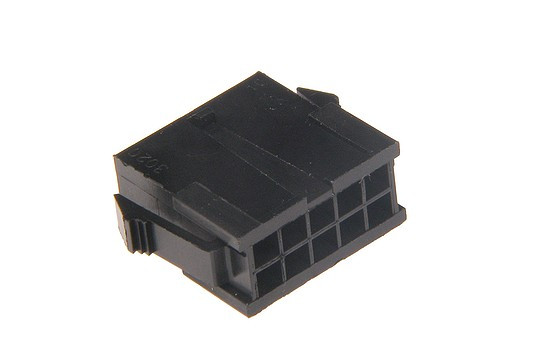

H4030-10PDB000R HSM Cable connector

Symbol Micros: Z MFZ10

27513

Z MFZ10

Contractor Symbol:

Case : Rys.MFZ10

Datasheet

Technical drawing Add to favourites

plug; male; MICRO-FIT 10pin; type of pin configuration: 2x5; pitch: 3.0mm mate with MFM, eqiv.MOLEX MX-43020-1000

Parameters

Number of pins:	10
Type of pin configuration:	2x5
Mounting:	Cables
Connector:	Plug
Type of connector:	Male

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of pins:	10
Type of pin configuration:	2x5
Mounting:	Cables
Connector:	Plug
Type of connector:	Male
