DS1018-102BX CONNFLY IDC connector

Symbol Micros: Z MP10

13546

Z MP10

Contractor Symbol:

Case : Rys.MP10

Datasheet

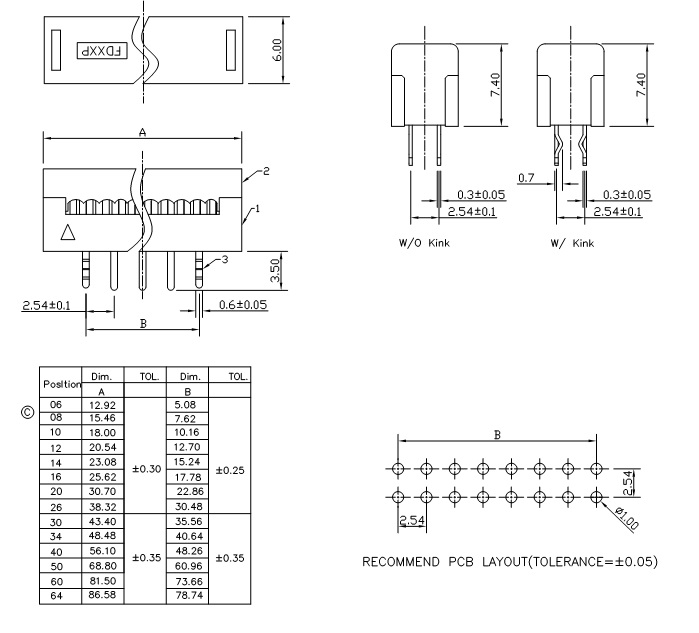

Technical drawing Add to favourites

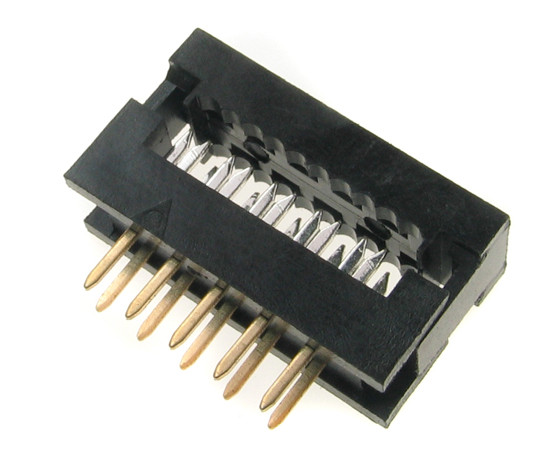

male 10pin IDC, pitch 2.54mm, black, with fastener, for ribbon cable 28AWG suitable for IDC cable mounting for PCB, eqiv. MM-PCT10, AWLP10, PCT10-LF

Parameters

Number of pins:	10
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Terminal pitch:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1018-102BX RoHS Case style: Rys.MP10

In stock:

0 pcs.

Quantity of pcs.	5+	30+	180+	720+	2880+
Net price (EUR)	0,2471	0,1203	0,0836	0,0744	0,0708

Add to comparison tool Add inquiry (RFQ)

Packaging:
180/4500/9000 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-102BX RoHS Case style: Rys.MP10 Datasheet

In stock:

19880 pcs.

Quantity of pcs.	5+	30+	180+	720+	2880+
Net price (EUR)	0,2471	0,1203	0,0836	0,0744	0,0708

Add to comparison tool Add inquiry (RFQ)

Packaging:
180/4500 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-102BX Case style: Rys.MP10

External warehouse:

9180 pcs.

Quantity of pcs.	180+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,0708

Add to comparison tool Add inquiry (RFQ)

Packaging:
180

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	10
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Terminal pitch:	2,54mm
Type of connector:	Male
