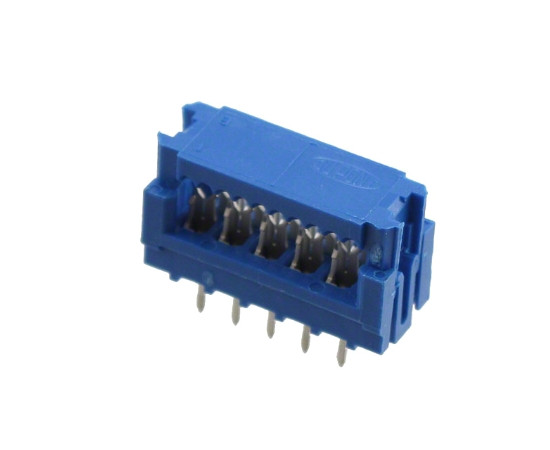

69830-010LF AMPHENOL IDC connector

Symbol Micros: Z MP10-69830-010LF

191376

Z MP10-69830-010LF

Contractor Symbol:

Case : Rys.MP10-69830-010LF

Datasheet

Technical drawing Add to favourites

male 10pin IDC, pitch 2.54mm, black, with fastener, for ribbon cable 28AWG suitable for IDC cable mounting for PCB, eqiv. MM-PCT10, AWLP10, PCT10-LF

Parameters

Number of pins:	10
Mounting:	Tape mounting (AWG28)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: Amphenol Manufacturer part number: 69830-010LF RoHS Case style: Rys.MP10-69830-010LF

In stock:

33 pcs.

Quantity of pcs.	1+	3+	10+	33+	132+
Net price (EUR)	1,3094	0,9945	0,8216	0,7364	0,6890

Add to comparison tool Add inquiry (RFQ)

Packaging:
33 Quantity (multiple: 1)

- +

Manufacturer:: Amphenol Manufacturer part number: 69830-010LF Case style: Rys.MP10-69830-010LF

External warehouse:

1023 pcs.

Quantity of pcs.	132+ (Please wait for the order confirmation)
Net price (EUR)	1,0680

Add to comparison tool Add inquiry (RFQ)

Packaging:
33

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	10
Mounting:	Tape mounting (AWG28)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male
