DS1018-142BX CONNFLY IDC connector

Symbol Micros: Z MP14

8617

Z MP14

Contractor Symbol:

Case : Rys.MP14

Datasheet

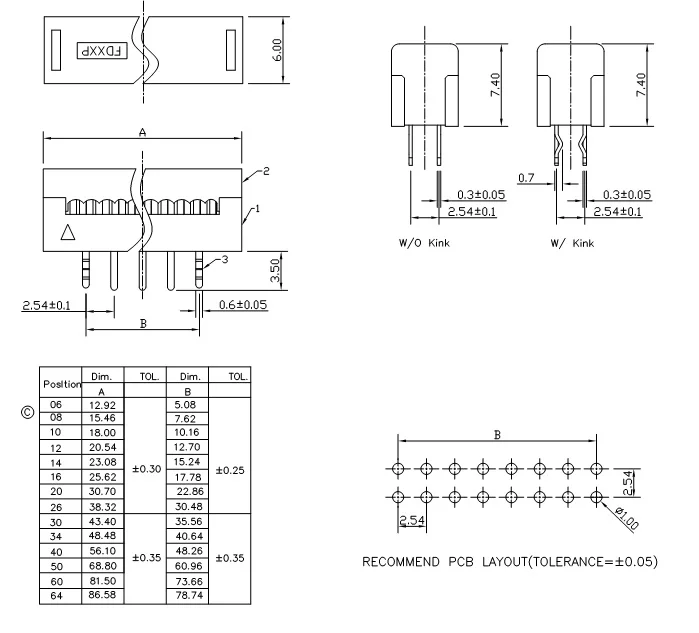

Technical drawing Add to favourites

male 14pin IDC, pitch 2.54mm, black, with fastener, for ribbon cable 28AWG suitable for IDC cable mounting for PCB, eqiv. MM-PCT14, AWLP14, PCT14-LF

Parameters

Number of pins:	14
Mounting:	Tape mounting (AWG28)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-142BX RoHS Case style: Rys.MP14 Datasheet

In stock:

0 pcs.

Quantity of pcs.	3+	10+	40+	144+	720+
Net price (EUR)	0,3030	0,1925	0,1394	0,1196	0,1100

Add to comparison tool Add inquiry (RFQ)

Packaging:
144/2016 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-142BX Case style: Rys.MP14

External warehouse:

7200 pcs.

Quantity of pcs.	144+ (Please wait for the order confirmation)
Net price (EUR)	0,1100

Add to comparison tool Add inquiry (RFQ)

Packaging:
144

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2027-01-30

Quantity of pcs.: 2016

• Parameters

Number of pins:	14
Mounting:	Tape mounting (AWG28)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male
