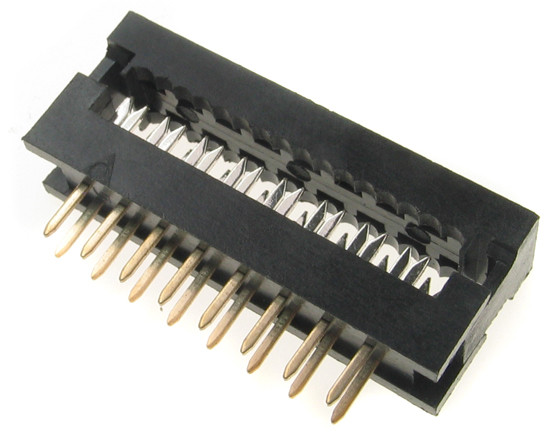

DS1018-162BX CONNFLY IDC connector

Symbol Micros: Z MP16

7725

Z MP16

Contractor Symbol:

Case : Rys.MP16

Datasheet

Technical drawing Add to favourites

male 16pin IDC, pitch 2.54mm, black, with fastener, for ribbon cable 28AWG suitable for IDC cable mounting for PCB, eqiv. MM-PCT16, AWLP16, PCT16-LF

Parameters

Number of pins:	16
Mounting:	Tape mounting (AWG28)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-162BX RoHS Case style: Rys.MP16 Datasheet

In stock:

7500 pcs.

Quantity of pcs.	3+	10+	40+	120+	480+
Net price (EUR)	0,3403	0,2206	0,1620	0,1418	0,1305

Add to comparison tool Add inquiry (RFQ)

Packaging:
120 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-162BX Case style: Rys.MP16

External warehouse:

2040 pcs.

Quantity of pcs.	120+ (Please wait for the order confirmation)
Net price (EUR)	0,1305

Add to comparison tool Add inquiry (RFQ)

Packaging:
120

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-09-01

Quantity of pcs.: 6000

• Parameters

Number of pins:	16
Mounting:	Tape mounting (AWG28)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male
