DS1018-02-16B8 CONNFLY IDC connector

Symbol Micros: Z MP16 2.0

87224

Z MP16 2.0

Contractor Symbol:

Case : Rys.MP16 2.0

Datasheet

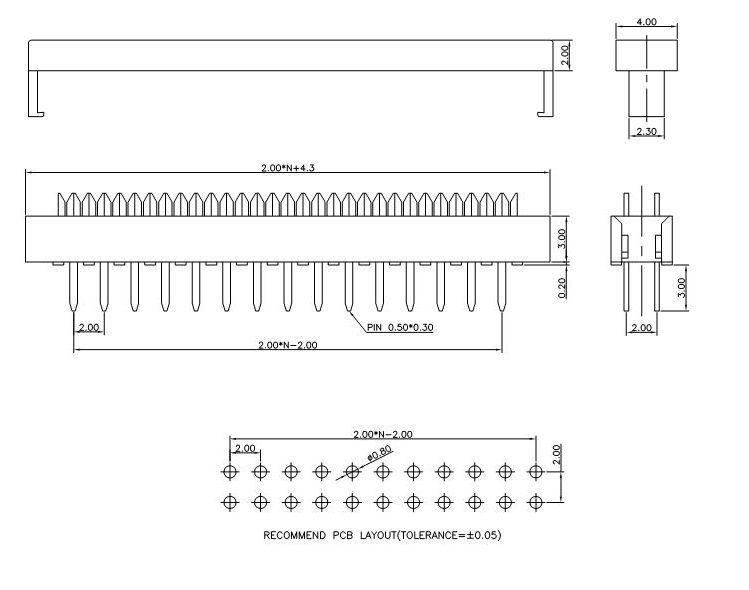

Technical drawing Add to favourites

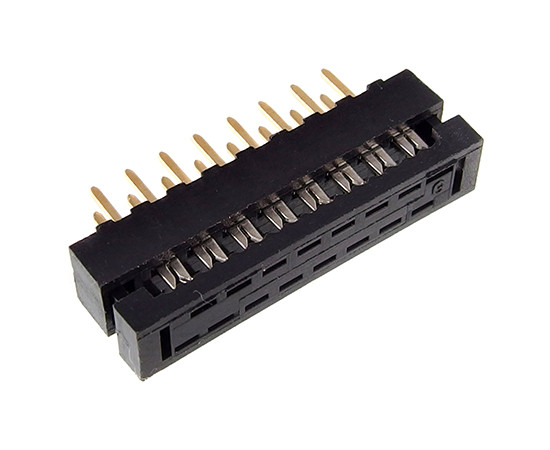

male 16pin IDC, pitch 2.0mm, black, with fastener, for ribbon cable 28AWG suitable for IDC cable mounting for PCB

Parameters

Number of pins:	16
Mounting:	Tape mounting (AWG28)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [mm]:	2,0mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-02-16B2 RoHS Case style: Rys.MP16 2.0 Datasheet

In stock:

550 pcs.

Quantity of pcs.	2+	10+	40+	156+	550+
Net price (EUR)	0,4277	0,2571	0,2025	0,1800	0,1711

Add to comparison tool Add inquiry (RFQ)

Packaging:
156/550 Quantity (multiple: 1)

- +

• Parameters

Number of pins:	16
Mounting:	Tape mounting (AWG28)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [mm]:	2,0mm
Type of connector:	Male
