DS1018-202BX CONNFLY IDC connector

Symbol Micros: Z MP20

15651

Z MP20

Contractor Symbol:

Case : Rys.MP20

Datasheet

Technical drawing Add to favourites

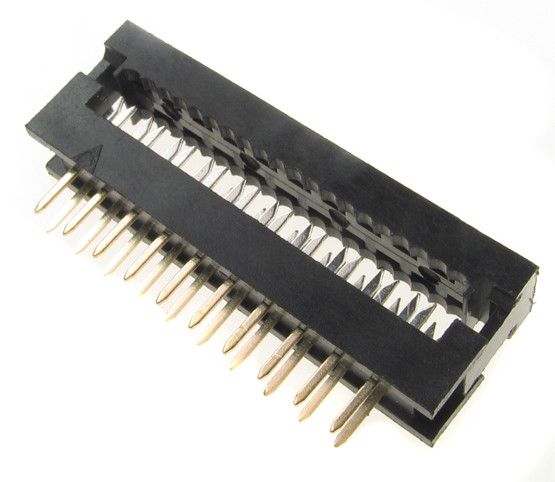

male 20pin IDC, pitch 2.54mm, black, with fastener, for ribbon cable 28AWG suitable for IDC cable mounting for PCB, eqiv. PCT20-DC, AWLP20, PCT20-LF

Parameters

Number of pins:	20
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-202BX RoHS Case style: Rys.MP20 Datasheet

In stock:

1654 pcs.

Quantity of pcs.	3+	10+	30+	108+	540+
Net price (EUR)	0,4235	0,2760	0,2129	0,1794	0,1627

Add to comparison tool Add inquiry (RFQ)

Packaging:
108/2700 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-202BX Case style: Rys.MP20

External warehouse:

2892 pcs.

Quantity of pcs.	108+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,1627

Add to comparison tool Add inquiry (RFQ)

Packaging:
108

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	20
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male
