DS1018-262BX CONNFLY IDC connector

Symbol Micros: Z MP26

8737

Z MP26

Contractor Symbol:

Case : Rys.MP26

Datasheet

Technical drawing Add to favourites

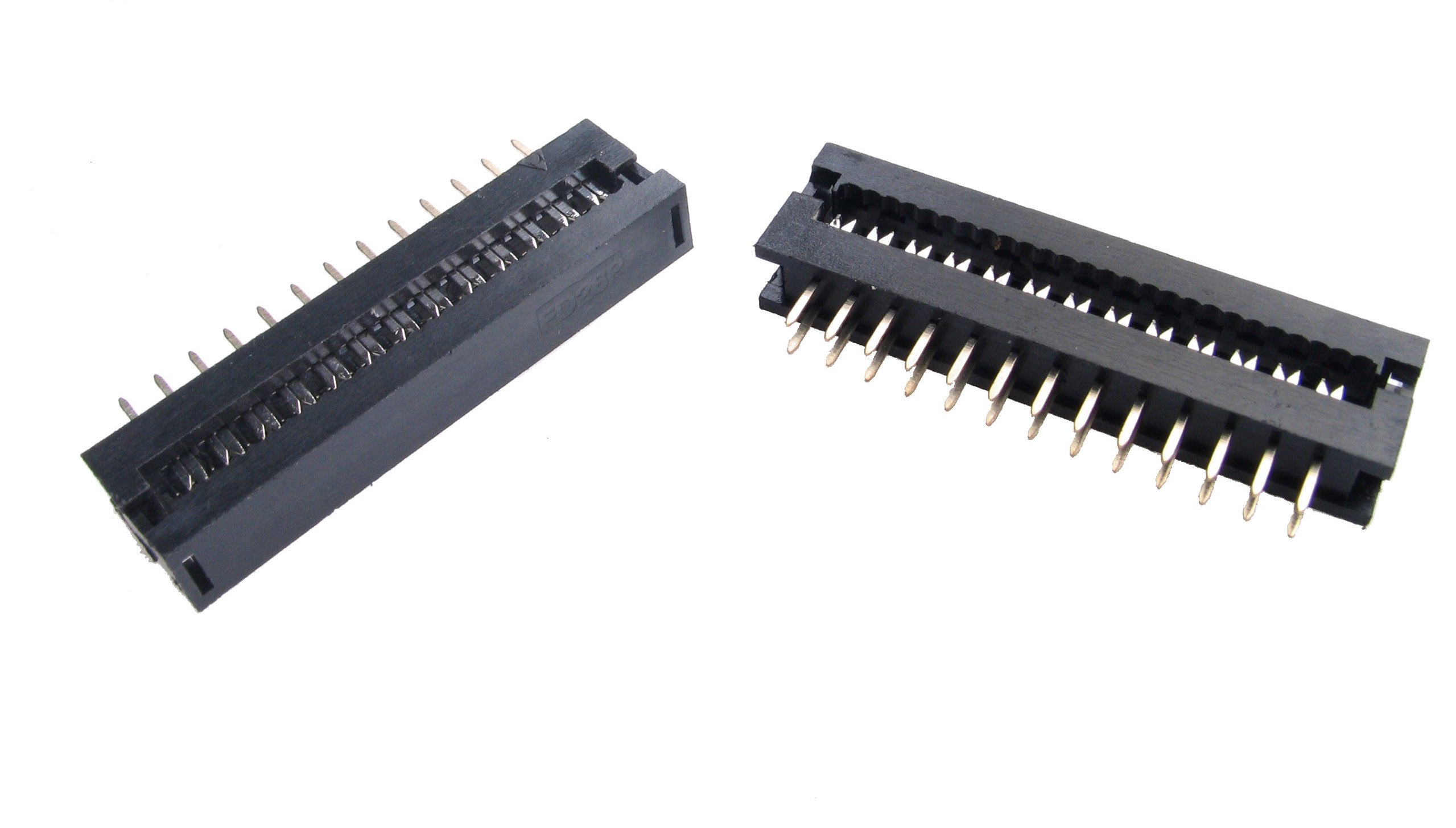

male 26pin IDC, pitch 2.54mm, black, with fastener, for ribbon cable 28AWG suitable for IDC cable mounting for PCB, eqiv. PCT-26, AWLP26, PCT26-LF

Parameters

Number of pins:	26
Mounting:	Tape mounting (AWG28)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1018-262BX RoHS Case style: Rys.MP26

In stock:

4 pcs.

Quantity of pcs.	3+	15+	84+	420+	1680+
Net price (EUR)	0,4139	0,2418	0,1811	0,1623	0,1562

Add to comparison tool Add inquiry (RFQ)

Packaging:
84/2100/4200 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-262BX RoHS Case style: Rys.MP26 Datasheet

In stock:

38 pcs.

Quantity of pcs.	3+	15+	84+	420+	1680+
Net price (EUR)	0,4139	0,2441	0,1841	0,1655	0,1595

Add to comparison tool Add inquiry (RFQ)

Packaging:
84 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-262BX Case style: Rys.MP26

External warehouse:

8400 pcs.

Quantity of pcs.	84+ (Please wait for the order confirmation)
Net price (EUR)	0,1595

Add to comparison tool Add inquiry (RFQ)

Packaging:
84

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Number of pins:	26
Mounting:	Tape mounting (AWG28)
Spatial orientation:	Straight
Gold plating:	Gilded contacts
Terminal pitch [m]:	2,54mm
Type of connector:	Male
