DS1018-342BX CONNFLY IDC connector

Symbol Micros: Z MP34

7726

Z MP34

Contractor Symbol:

Case : Rys.MP34

Datasheet

Technical drawing Add to favourites

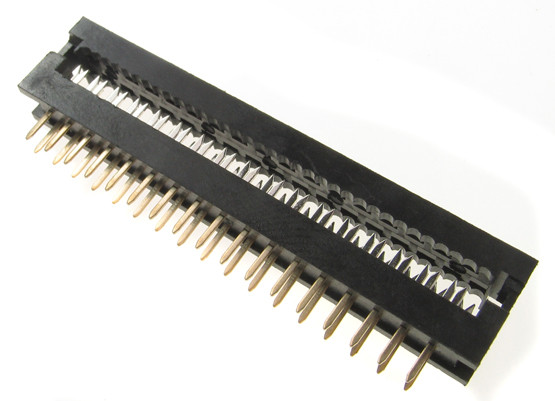

male 34pin IDC, pitch 2.54mm, black, with fastener, for ribbon cable 28AWG suitable for IDC cable mounting for PCB, eqiv. PCT34-DC, AWLP34

Parameters

Number of pins:	34
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-342BX RoHS Case style: Rys.MP34 Datasheet

In stock:

600 pcs.

Quantity of pcs.	2+	10+	60+	300+	600+
Net price (EUR)	0,6852	0,4306	0,3331	0,3045	0,2974

Add to comparison tool Add inquiry (RFQ)

Packaging:
60/600 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-342BX Case style: Rys.MP34

External warehouse:

1020 pcs.

Quantity of pcs.	60+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,2974

Add to comparison tool Add inquiry (RFQ)

Packaging:
60

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	34
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male
