DS1018-402BX CONNFLY IDC connector

Symbol Micros: Z MP40

7727

Z MP40

Contractor Symbol:

Case : Rys.MP40

Datasheet

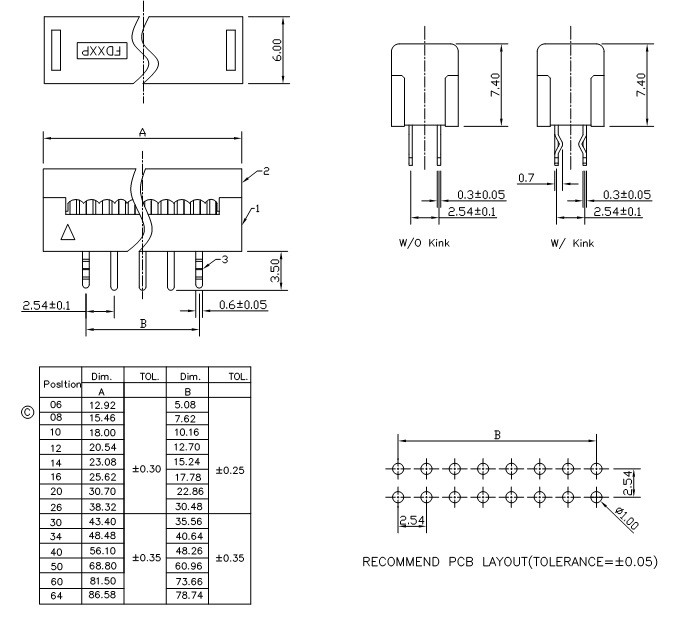

Technical drawing Add to favourites

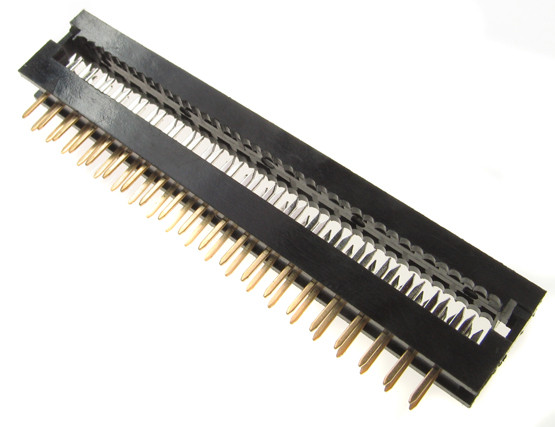

male 40pin IDC, pitch 2.54mm, black, with fastener, for ribbon cable 28AWG suitable for IDC cable mounting for PCB, eqiv. PCT40-LF, AWLP40

Parameters

Number of pins:	40
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male

All parameters

Manufacturer:: CONNFLY (Zhenqin) Manufacturer part number: DS1018-402BX RoHS Case style: Rys.MP40

In stock:

250 pcs.

Quantity of pcs.	2+	10+	60+	200+	600+
Net price (EUR)	0,6614	0,4187	0,3236	0,2998	0,2879

Add to comparison tool Add inquiry (RFQ)

Packaging:
60/200 Quantity (multiple: 1)

- +

Manufacturer:: CONNFLY ELECTRONIC Manufacturer part number: DS1018-402BX Case style: Rys.MP40

External warehouse:

3000 pcs.

Quantity of pcs.	60+ (Need a significantly larger quantity? Ask for price).
Net price (EUR)	0,2879

Add to comparison tool Add inquiry (RFQ)

Packaging:
60

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 20 Euro.

• Parameters

Number of pins:	40
Mounting:	Tape mounting (AWG28)
Gold plating:	Gilded contacts
Spatial orientation:	Straight
Terminal pitch [m]:	2,54mm
Type of connector:	Male
